Με μια ματιά

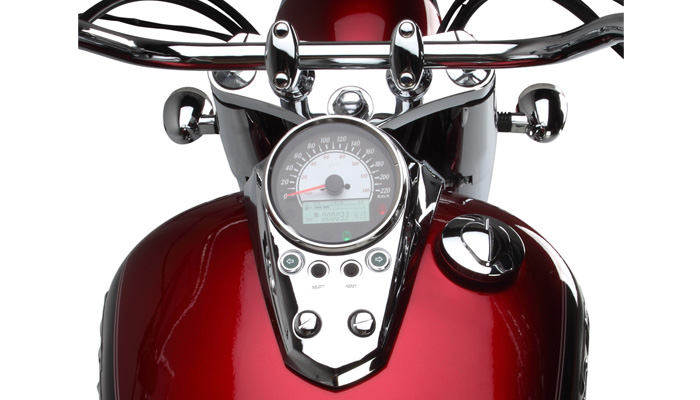

Dashboard
The dashboard consists of a speedometer featuring a spectrum pointer, which enhances visibility, and a multi-functional LCD.

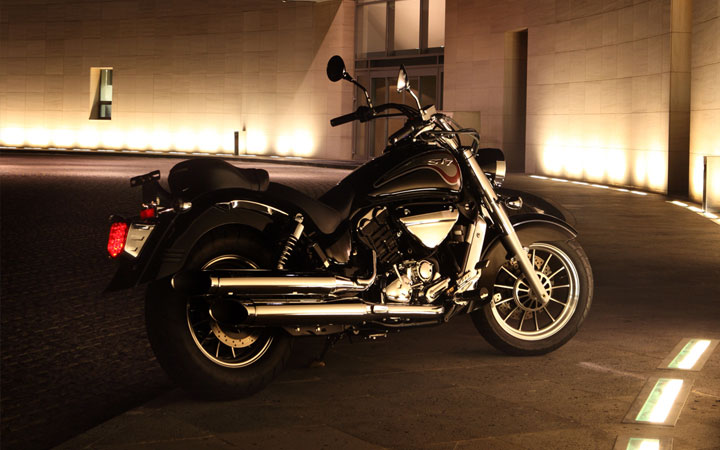

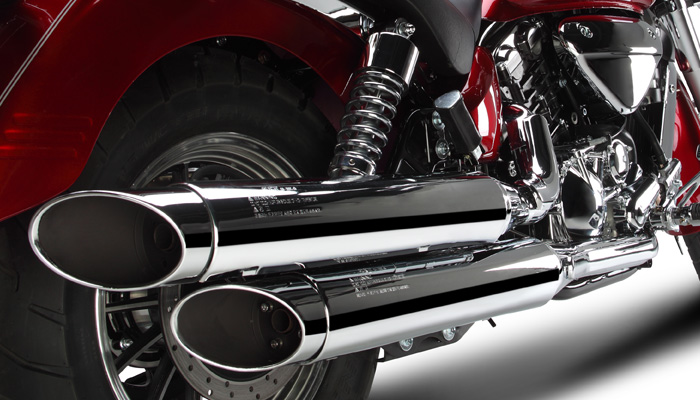

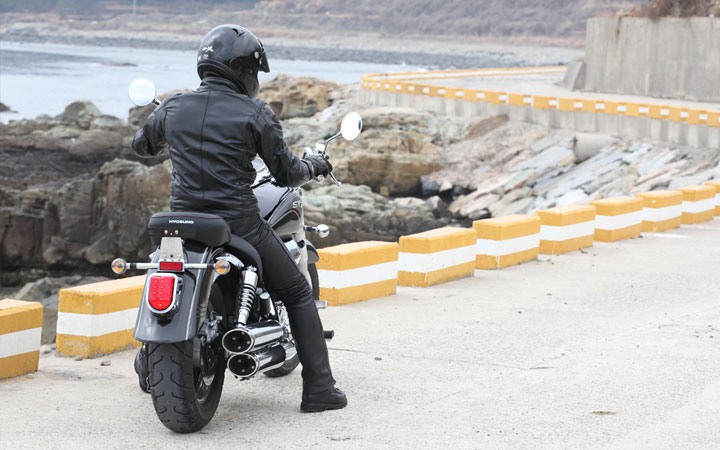

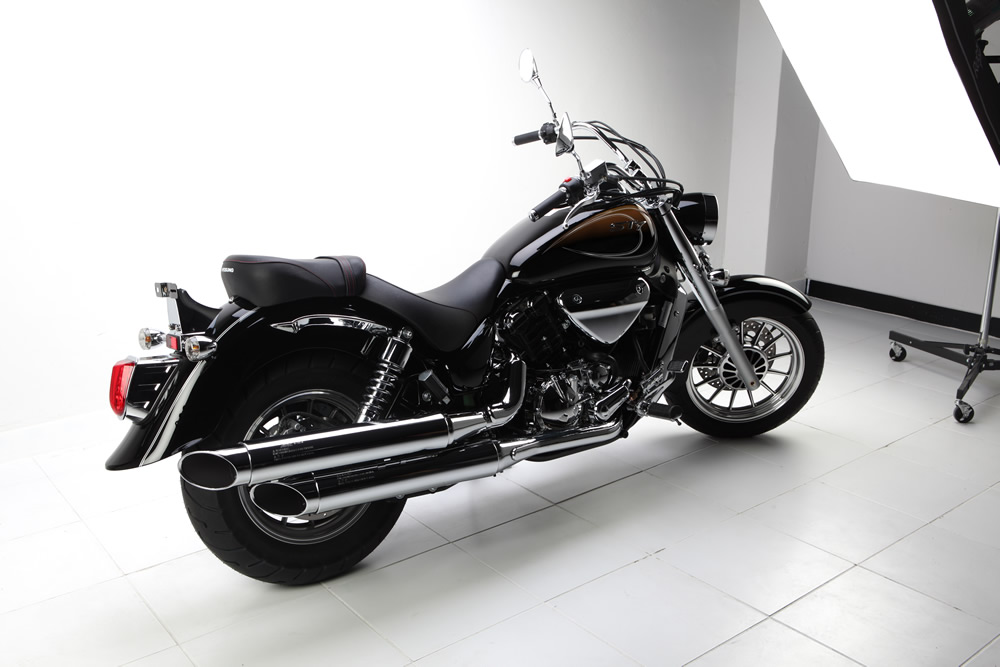

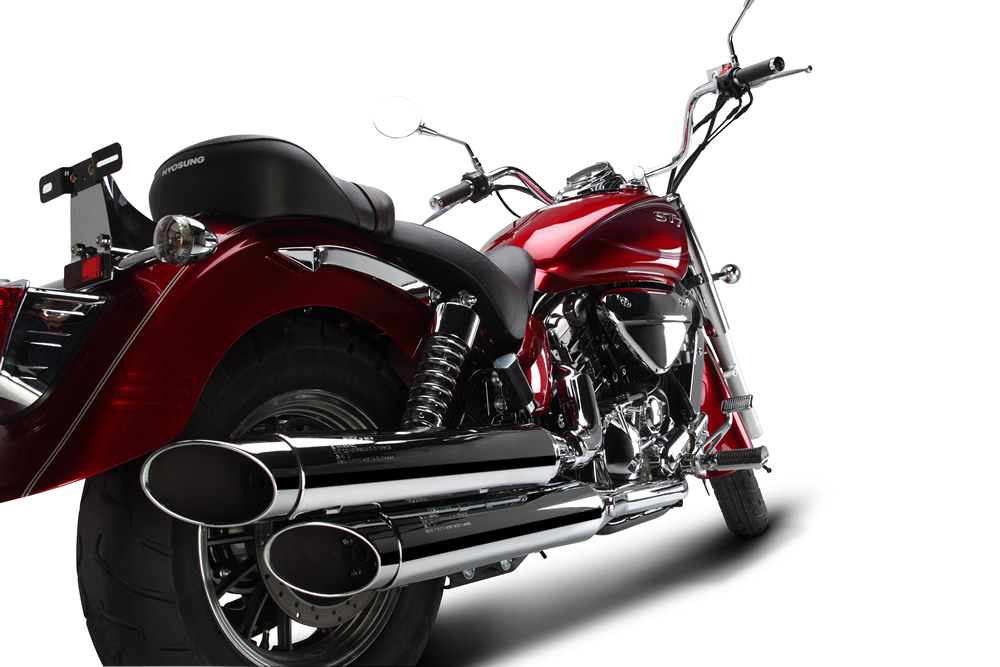

Muffler
Twin slash-cut mufflers that meet the strict environmental and noise standards.

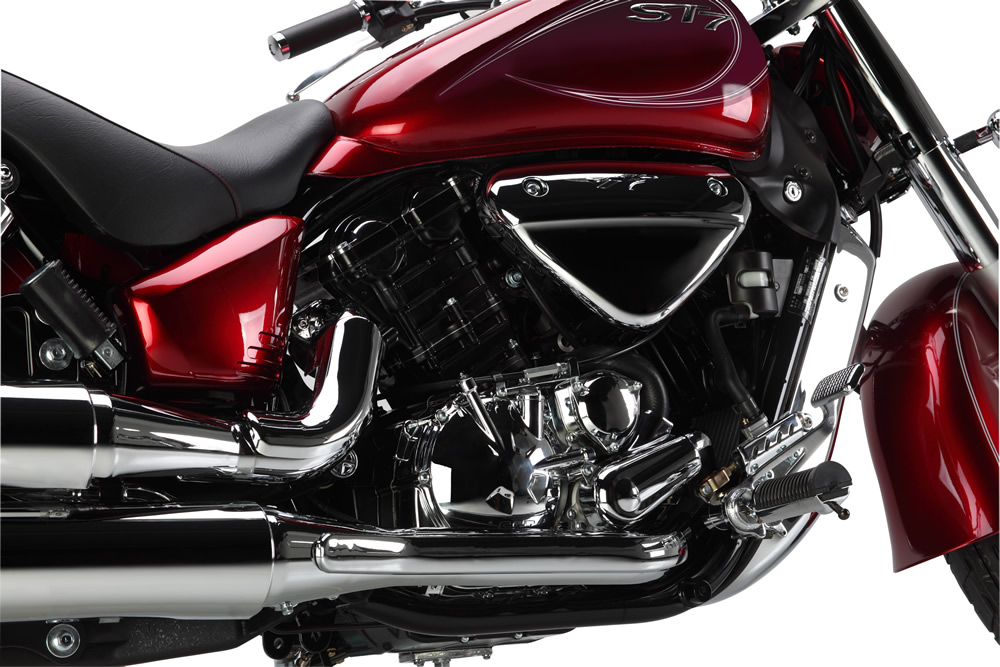

Engine
680cc liquid-cooled 90° DOHC 8-valve V-twin engines – the strong heart of a sport motorcycle combined with the traditional cruiser style.

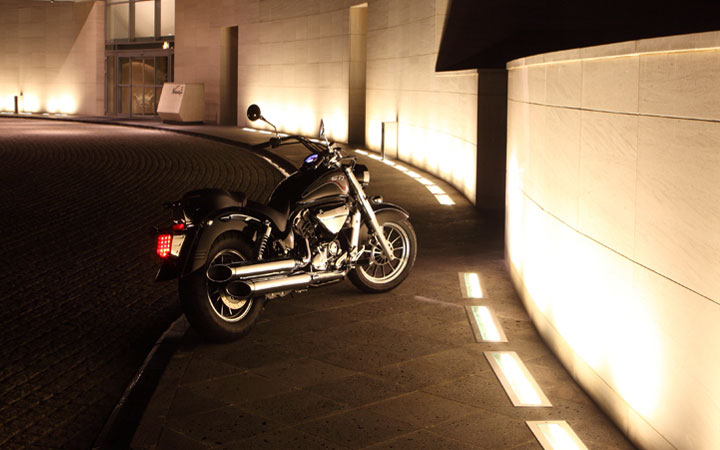

Tail lamps
LED tail lamps with a fast response time and superb durability.
Helmet holder
Holder designed to store helmets while parking.

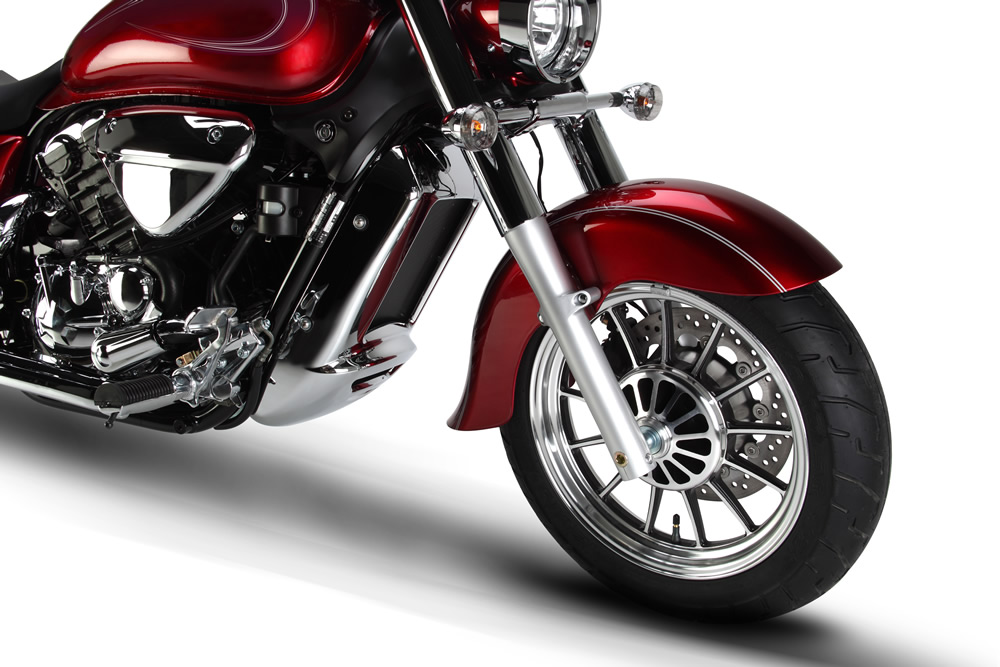

Brakes
300mm floating disc brakes with 4-port twin-piston calipers.
Handlebars
Handlebars made lower and wider to allow a comfortable rider position and better steering.
Emblem
Plastic 3D emblem (Chrome).
Τεχνικά χαρακτηριστικά
| DIVISION | DATA | ST7 |
|---|
| ENGINE |
Type |
Liquid cooled DOHC 8-valve 90° V-twin |
|---|
| Displacement |
678.2cc |
| Bore x Stroke |
81.5 x 65mm |
| Compression Ratio |
11.5 : 1 |
| Max Power |
46.0kW / @8000RPM |
| Max Torque |
57.3Nm / @7000RPM |
| Fuel System |
Fuel injection |
| Lubrication |
Wet sump |
| TRANSMISSION |
Clutch |
Wet, Multiplate |
|---|
| Gear |
Constant mesh 5-speed (1down 4up) |
| Final Drive |
Belt |
| CHASSIS |
Overall Length |
2470mm |
|---|
| Overall Height |
1135mm |
| Overall Width |
960mm |
| Wheel Base |
1690mm |
| Ground Clearance |
155mm |
| Seat Height |
675mm |
| Brake(front) |
F: 300Ø Semi floating single disc, 4 pistons caliper |
| Brake(rear) |
R: 270Ø Single disc, 2 pistons caliper |
| Suspension(front) |
F: 41Ø Conventional Telescopic |

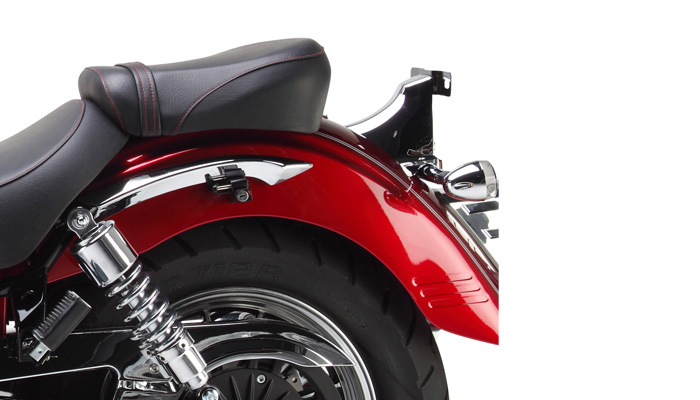

| Suspension(rear) |
R: Swing arm with Hydraulic Double shock absorber (Preload adjustable) |
| Tyre(front) |
F: 120/80-16 60H |
| Tyre(rear) |
R: 170/80-15 77H |
| Fuel Tank Capacity |
17L |
| Mass (running order) |
244kg |
Χρώματα

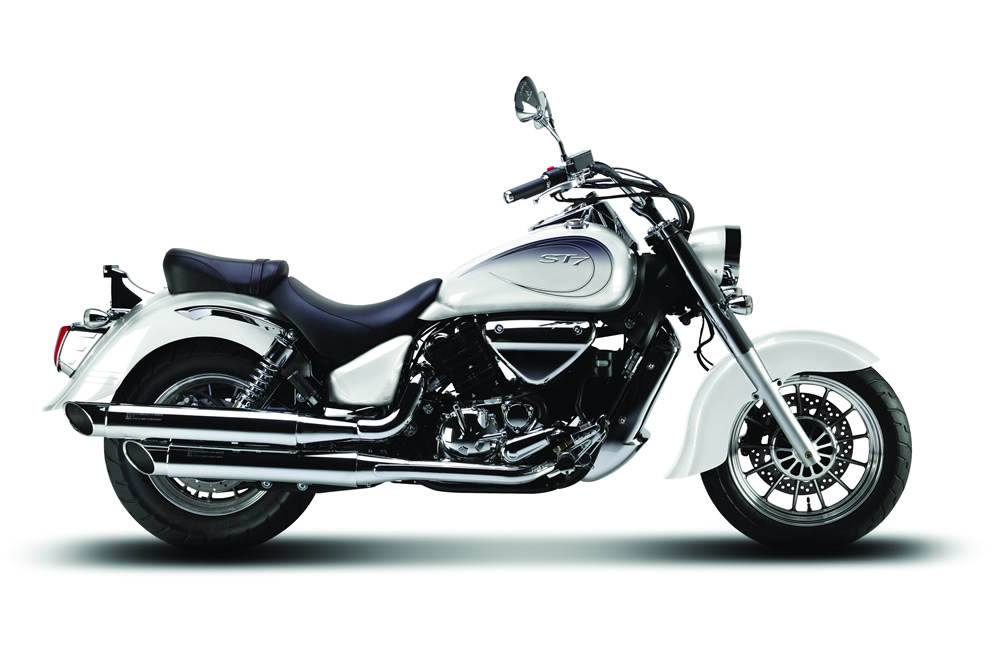

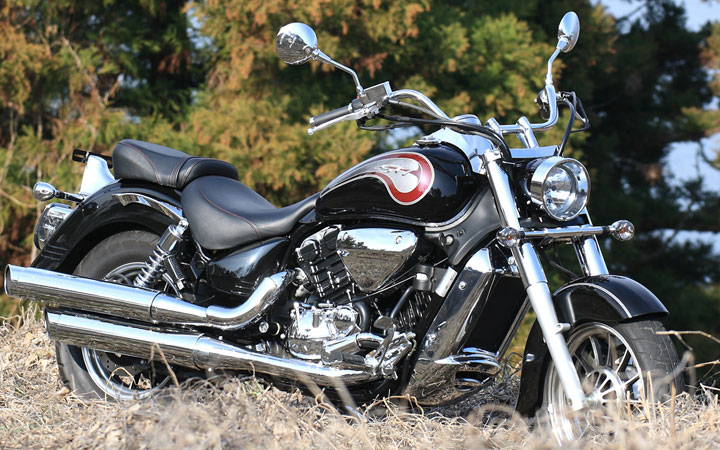

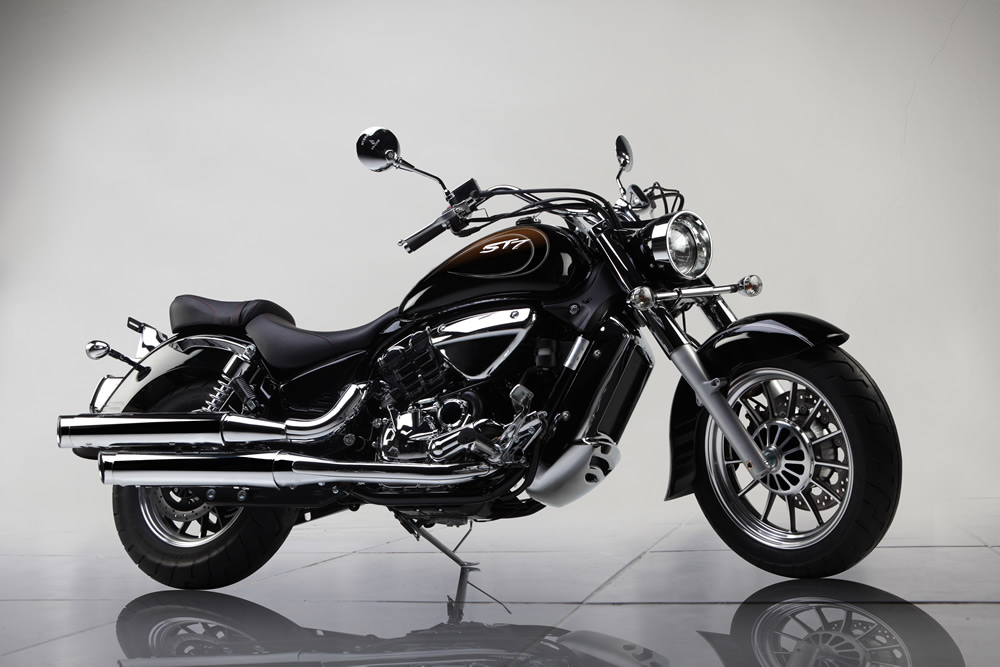

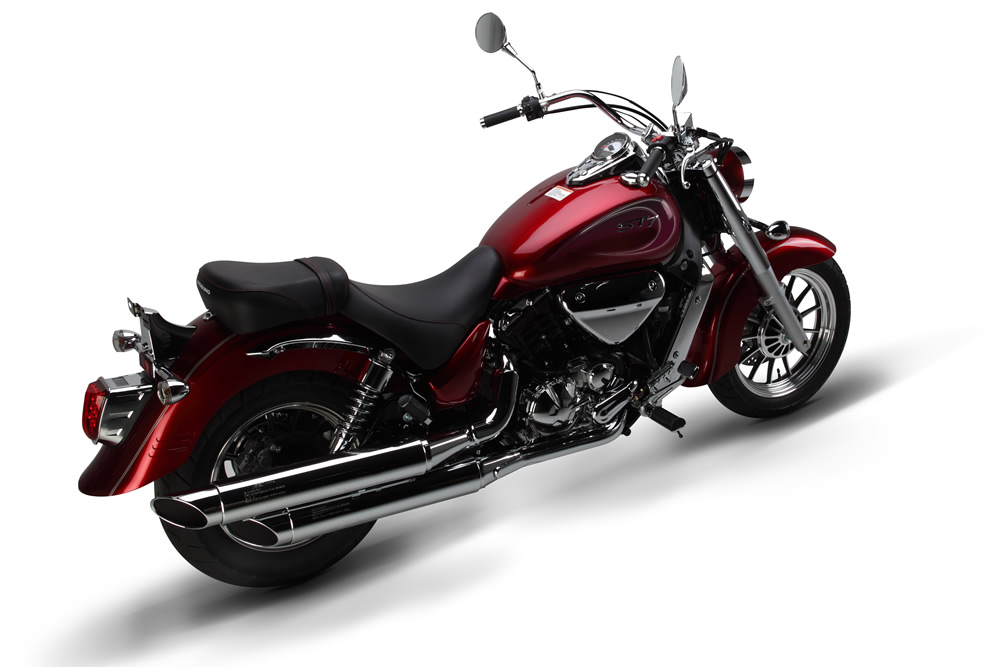

Μάυρο - Κόκκινο - Λευκό
