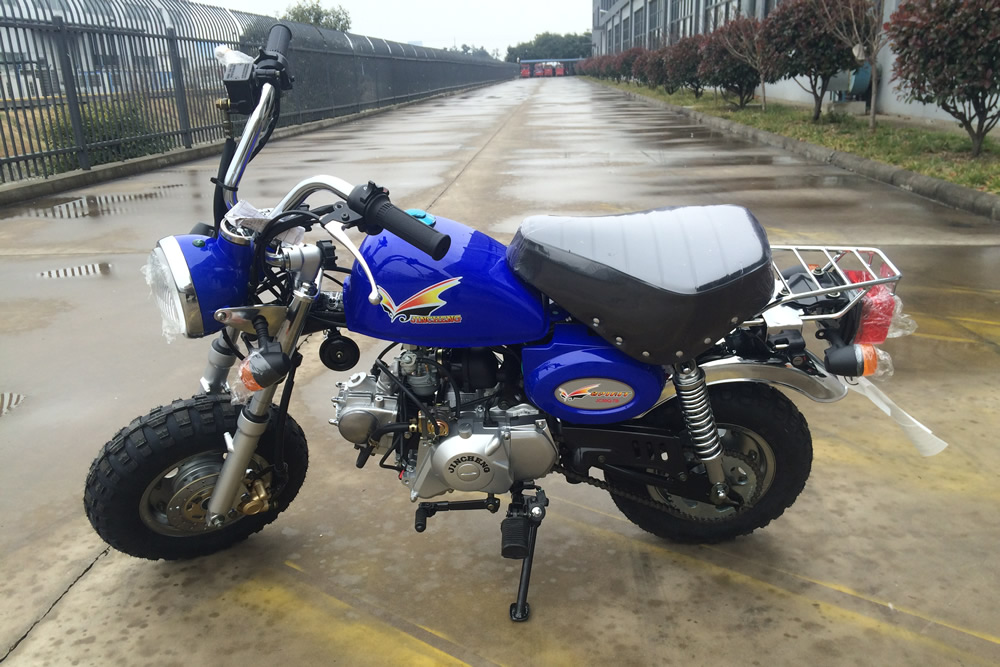

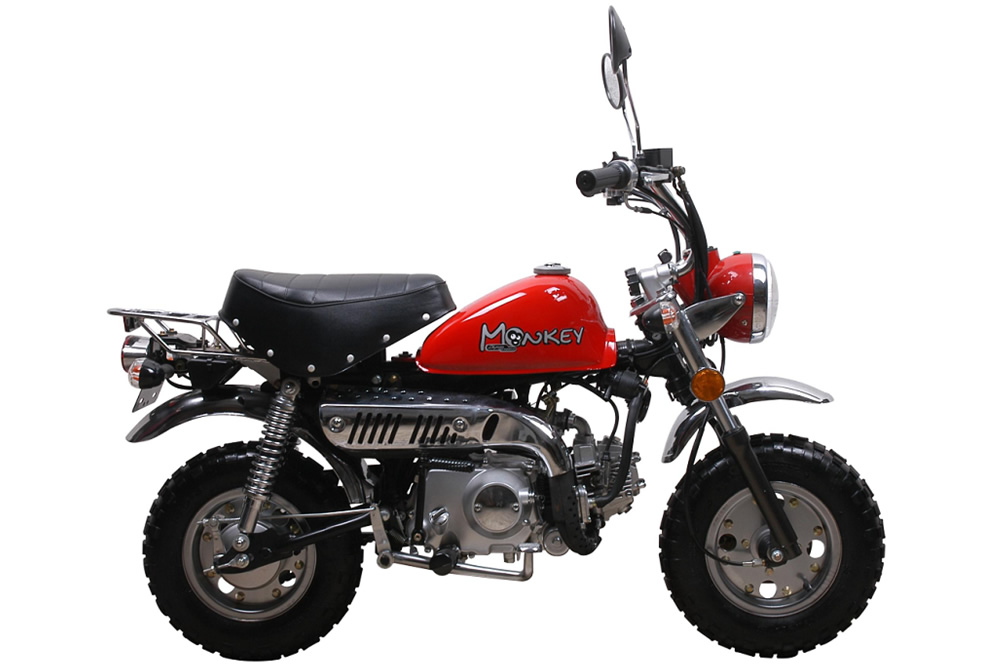

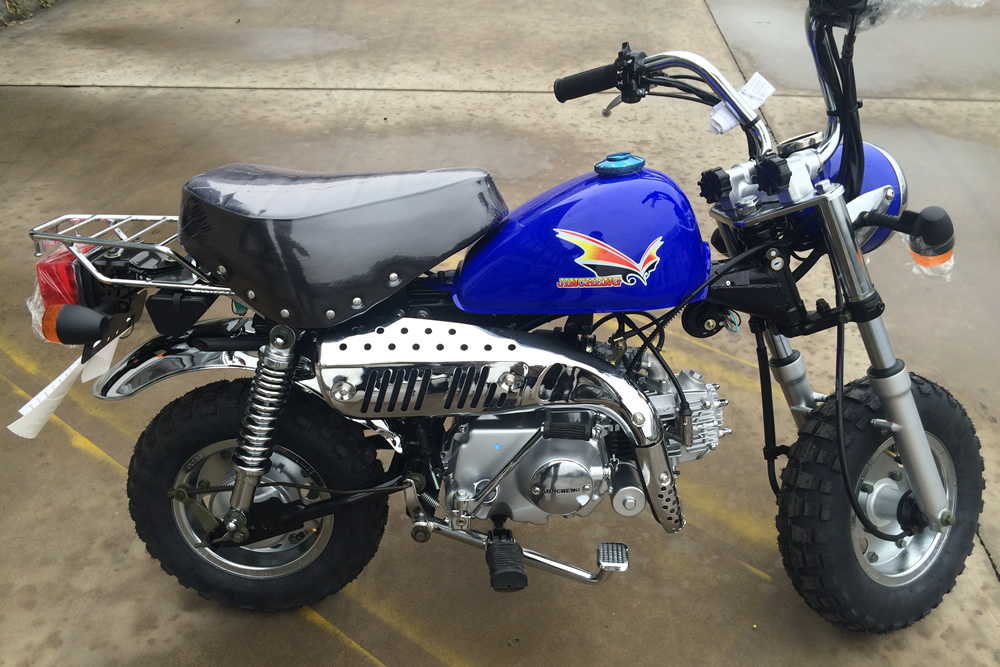

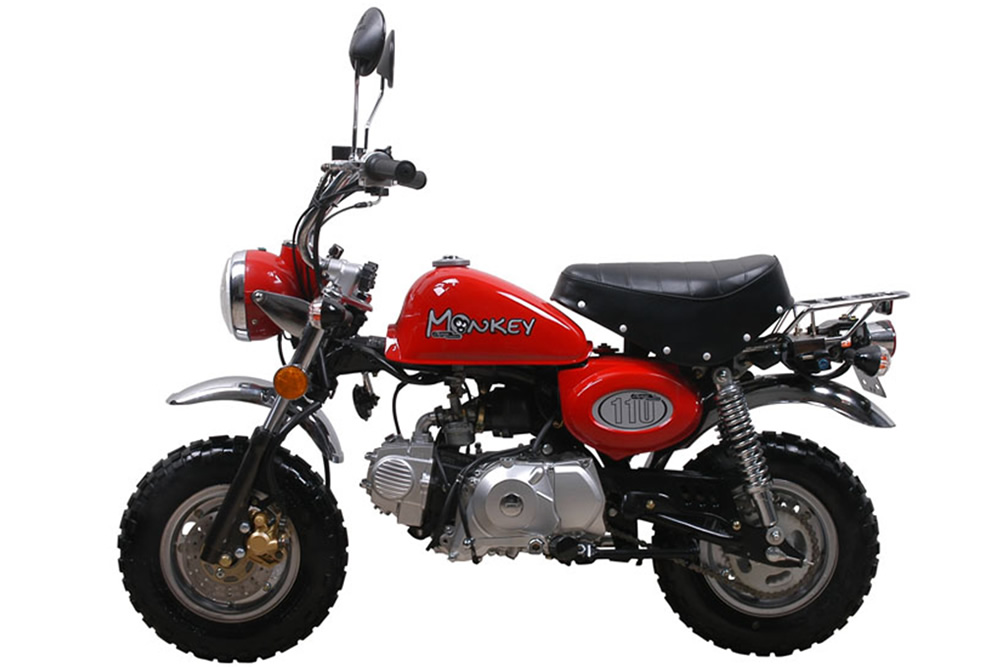

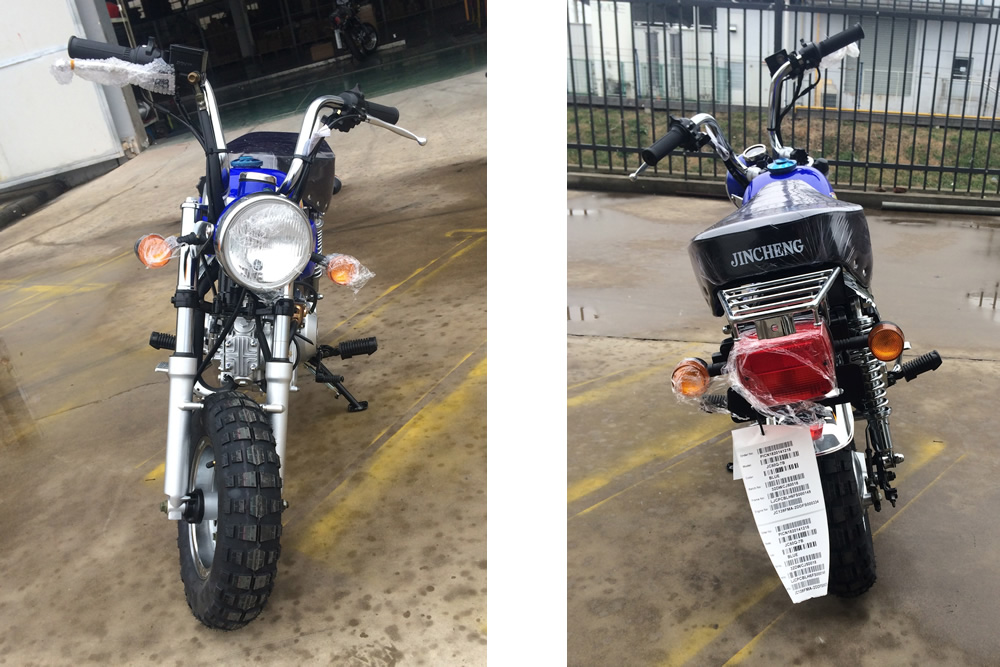

JC50Q-7B
Overview
Specifications
Overview
JINCHENG JC50Q-7B DISPLACEMENT:
49CC
SINGLE CYLINDER, 4-STROKE, 2-VALVE, AIR-COOLED, SOHS
MAX POWER:
2.4kW/7500rpm
CLEARANCE
: 170mm
BRAKE SYSTEM:
DISC/DRUM
Specifications
ENGINE
ENGINE TYPE
Air-Cooled, 4 stroke, single cylinder, 2 valve, SOHS
DISPLACEMENT
49CC
BORE*STROKE
39 x 41.4mm
COMPRESSION RATIO
8.8 TO 1
MAXIMUM POWER
2.4kW/7500rpm
MAXIMUM TORQUE
2.75Nm/4500rpm
MAXIMUM SPEED
60km/h
MAXIMUM SPEED ON COC
42km/h
LUBRICATION SYSTEM
Pressure and splash lubrication
CARBURETOR/FUEL SUPPLY
DENI PZ17
CLUTCH TYPE
Wet, multiple disc
IGNITION SYSTEM
CDI
STARTER SYSTEM
Electric & Kick
TRANSMISSION SYSTEM
4-gear, Pedal
FINAL TRANSMISSION
Chain
FUAL TANK CAPACITY
4.5L
OIL TANK CAPACITY
800ml
CHASSIS
CHASSIS
Steel, Single-tube
FRONT SUSPENSION SYSTEM
Spring & Oil
FRONT TRAVEL
60mm
REAR SUSPENSION SYSTEM
Spring & Oil / Double Shock
REAR TRAVEL
50mm
FRONT BRAKE
Disc ￠155mm
REAR BRAKE
Drum
FRONT TYRE
3.5-8-4PR
REAR TYRE
3.5-8-4PR
DIMENSIONS
LENGTH
1375mm
WIDTH
600mm
HEIGHT
860mm
SEAT HEIGHT
700mm
WHEEL BASE
900mm
MINIMUM GROUND CLEARANCE
170mm
DRY WEIGHT
64KGS/168LBS
CONTAINER LOAD
84/174/174
PACKING DIMENSION
1150 x 410 x 750mm
