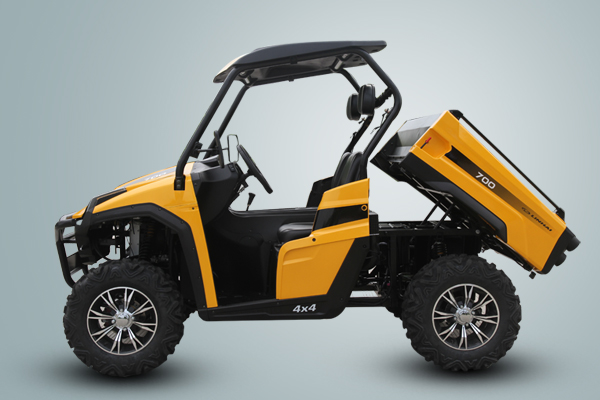

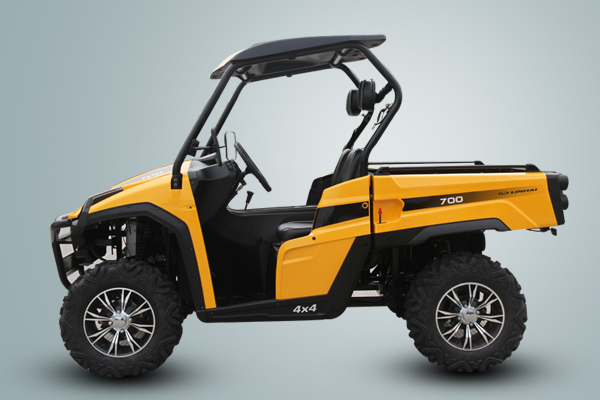

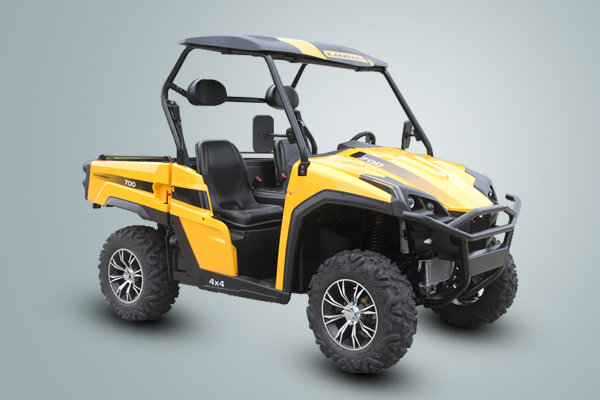

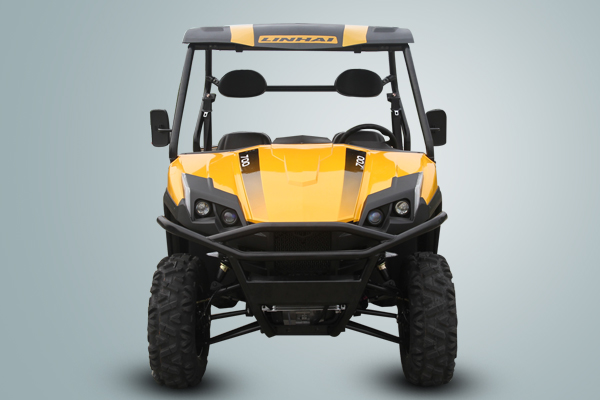

LH700U UTV
Overview
Specifications
Engine
Accessories
Overview
LINHAI UTV 700U DISPLACEMENT
: 694.6CC
SINGLE CYLINDER, WATER COOLING, SOHC
MAX POWER:
40.8hp/19.72
FRONT SUSPENSION:
DUAL A-ARM
REAR SUSPENSION:
INDEPENDENT (IRS)
CLEARANCE
: 250mm
FUEL TANK CAPACITY:
35L
BRAKE SYSTEM:
HYDRAULIC
Specifications
Vehicle
Length×Width×Height
3018×1520×1905 mm
Wheelbase
1930mm
Mini Ground Clearance
11in/280mm
Unladen Weight
1213lbs/550kg
Cargo Box Capacity
400lbs/181kg
Towing Capacity
1499lbs/680kg
Engine
Type No.
LH1102U-A
Fuel System
Fuel Type
Gasolion
Fuel Capacity
9gal/35L
Classis
Brake
Hydraulic
Suspension
Front:Dual A-arm；Rear: Independent(IRS)
Shock Absorber
Spring Preloaded,Oil Damping
Rim
Front: AT26X9-14 Rear: AT26X11-14
Tire Pressure(kpa)
Front:35kPa;Rear: 35kPa
Certificate
EEC/EPA
Color(s) Available
RED,GREEN,WHITE，YELLOW，VISTA CAMO
Optional Equipment
1.Aluminum wheel 2.Painted plastic3.EPS
Accessories
1.winch 2.bull bar 3.roof 4.front screen(safe glass/PC)
5.rear screen 6.rear protect net(steel)
Loading QTY. of 40'HC
12
Engine
Type No.
LH1102U
Model
One Cylinder、4-Stroke、Water and Oil Cooling, SOHC
Displacement
694.6cc
Number of Cylinders
1
Bore and Stroke
102×85mm
Compression Ratio
22:01
Max torque and REV
50Nm/5250(r/min)
Max Output Power
30Kw/5800(r/min)
Max Speed
80km/h
Start Type
Electric
Ignition Type
ECU
Transmission
CVT
Accessories
Right steering
Central mirror
Front Plastic Windshield
Safety windshield (steel frame)
Front winch (3000LBS)
Long seat (Only for UTV800)
Easy Clean Protecting Net of Radiator
Rubber plate on box
Felt pad of front locker
