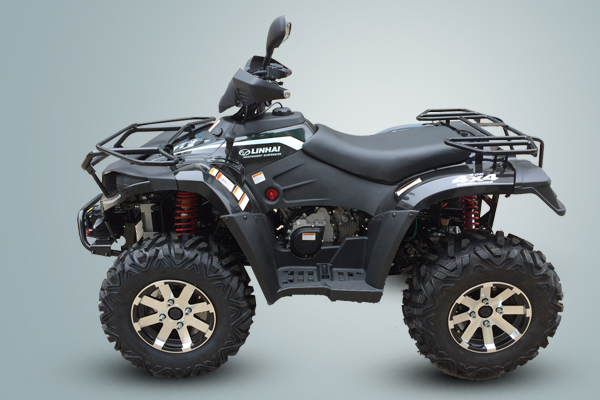

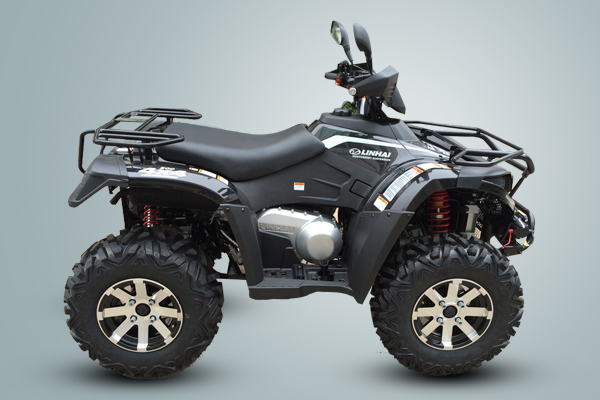

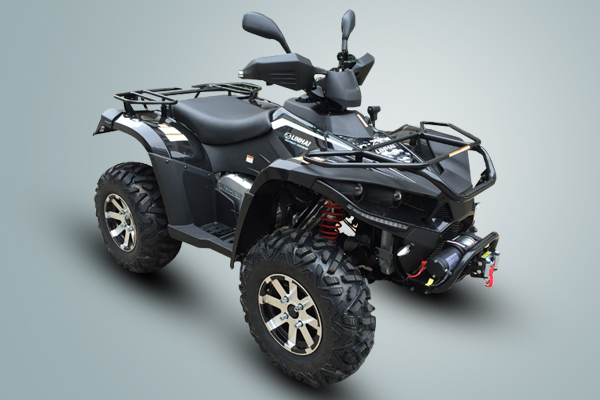

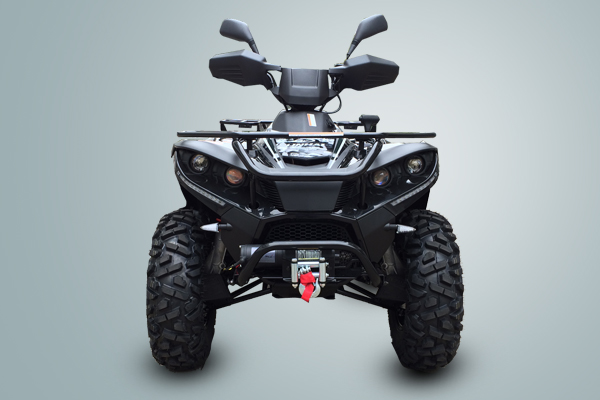

LH500ATV-D

Price: 5.750 euros

Overview

LINHAI ATV500-D DISPLACEMENT: 493CC
MAX POWER: 32HP
TOWING CAPACITY: 200KG
FRONT SUSPENSION: MacPhersan SUPENSION
REAR SUSPENSION: DOUBLE A-ARM INDEPENDENT SUSPENSION
CLEARANCE: 280MM
FUEL TANK CAPACITY: 12.5L
MAX LOADING CAPACITY: FRONT RACK: 18KG, REAR RACK:36KG
WHEELBASE: 1285MM

Specifications

Vehicle	Model	LH500ATV-D
	Length×Width×Height	2120×1185×1215
	Wheelbase	1285mm
	Seat height	900mm
	Mini Ground Clearance	253mm
	Mini Turning Diameter	6100mm
	Fuel Capacity	12.5L
	Weight	364kg
	Payload Capacity	150kg
	Drive	Switchable 2WD/4WD
Engine	Type No.	LH188MR
Classis	Brake	Hydraulic
	Suspension	independent suspension
	Shock Absorber	Spring Preloaded,Oil Damping
	Rim	Front: AT25X8-12 Rear: AT24X10-12
	Tire Pressure(kpa)	Front:95kPa;Rear: 95kPa
Certificate		EEC
Color(s) Available		RED,Blue,White,Black,Green
Loading QTY. of 40'HC		27

Engine

Type No.	LH188MR
Model	One cylinder,4 stroke, water-cool, SOHC
Displacement	493cc
Stroke and Bore	87.5mmX82mm
Compression Ratio	10.2:1
Max torque and REV	38.8/5500 Nm/r/min
Max Output Power	24kw
Max Speed	89km/h
Start Type	Electric
Ignition Type	CDI
Transmission	CVT
