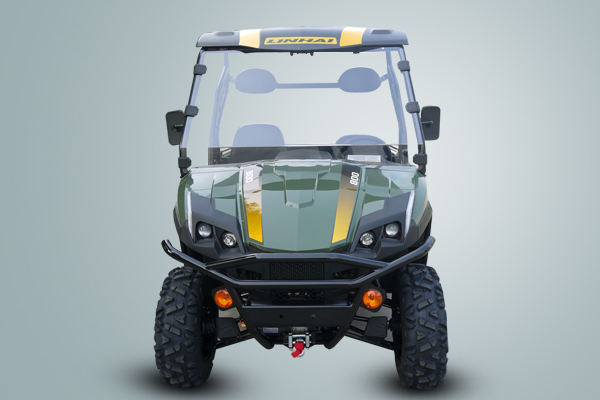

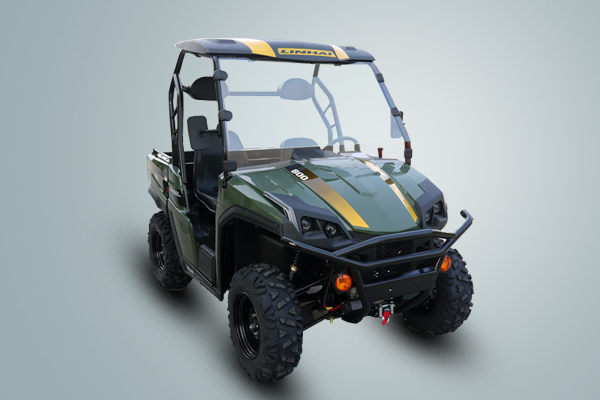

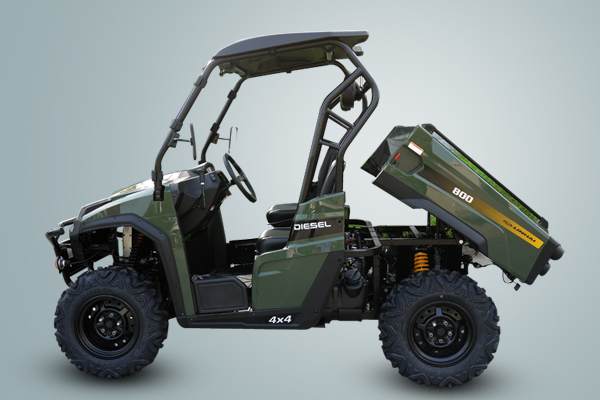

LH800U-2D Diesel UTV
Overview
Specifications
Engine
Accessories
Overview
LINHAI UTV 800U-2D Diesel DISPLACEMENT
: 762cc
3 CYLINDERS, 4 CYCLE, INLINE, WATER-COOLED DIESEL
MAX POWER:
40.8hp/19.72
FRONT SUSPENSION:
DUAL A-ARM
REAR SUSPENSION:
INDEPENDENT (IRS)
FUEL TANK CAPACITY:
35L
BRAKE SYSTEM:
Hydraulic
TOWING CAPACITY:
680kg
Specifications
Vehicle
Length×Width×Height
3018×1520×1905 mm
Wheelbase
1930mm
Mini Ground Clearance
11in/280mm
Unladen Weight
1543lbs/700kg
Cargo Box Capacity
882lbs/400kg
Towing Capacity
1499lbs/680kg
Engine
Type No.
Perkins 403D-07
Fuel System
Fuel Type
Gasolion
Fuel Capacity
9gal/35L
Classis
Brake
Hydraulic
Suspension
Front:Dual A-arm；Rear: Independent (IRS)
Shock Absorber
Spring Preloaded,Oil Damping
Rim
Front: AT26X9-14 Rear: AT26X11-14
Tire Pressure(kpa)
Front:35kPa;Rear: 35kPa
Certificate
EEC/EPA
Color(s) Available
RED,GREEN,WHITE，YELLOW，VISTA CAMO
Optional Equipment
1.Aluminum wheel 2.Painted plastic 3.EPS
Accessories
1.winch 2.bull bar 3.roof 4.front screen(safe glass/PC) 5.rear screen 6.rear protect net(steel)
Loading QTY. of 40'HC
11
Engine
Type No.
Perkins 403D-07
Model
4 Cycle, Inline, water-cooled Diesel
Displacement
762cc
Number of Cylinders
3
Stroke and Bore
67mmX72mm
Compression Ratio
22:01
Max torque and REV
25.3Nm/5000(r/min)
Max Output Power
14kw
Max Speed
40km/h
Start Type
Electric
Ignition Type
ECU
Transmission
CVT
Accessories
Right steering
Central mirror
Front Plastic Windshield
Safety windshield (steel frame)
Front winch (3000LBS)
Long seat (Only for UTV800)
Easy Clean Protecting Net of Radiator
Rubber plate on box
Felt pad of front locker
