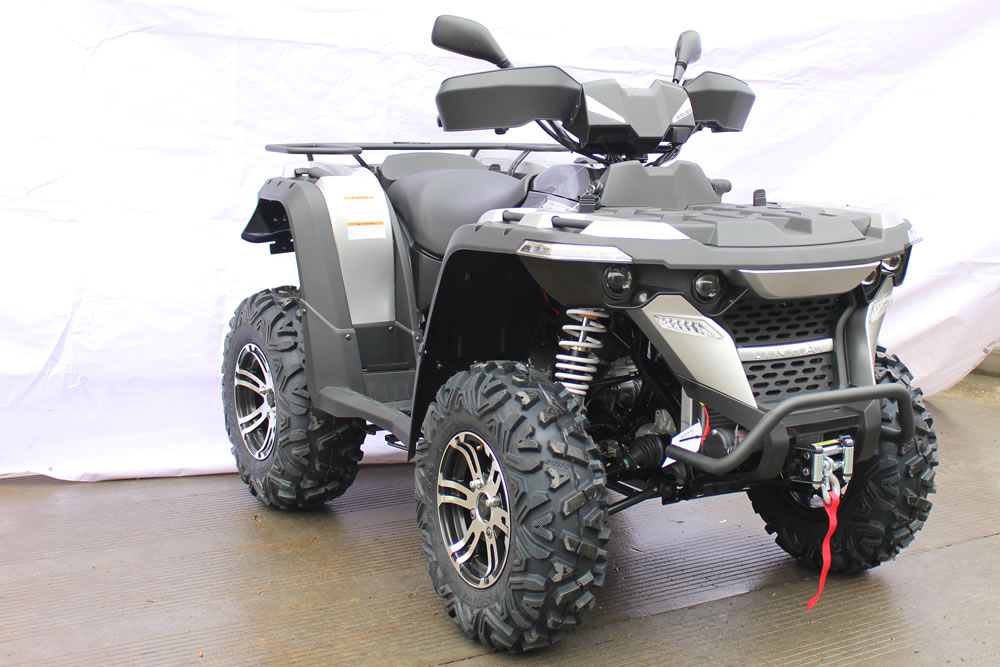

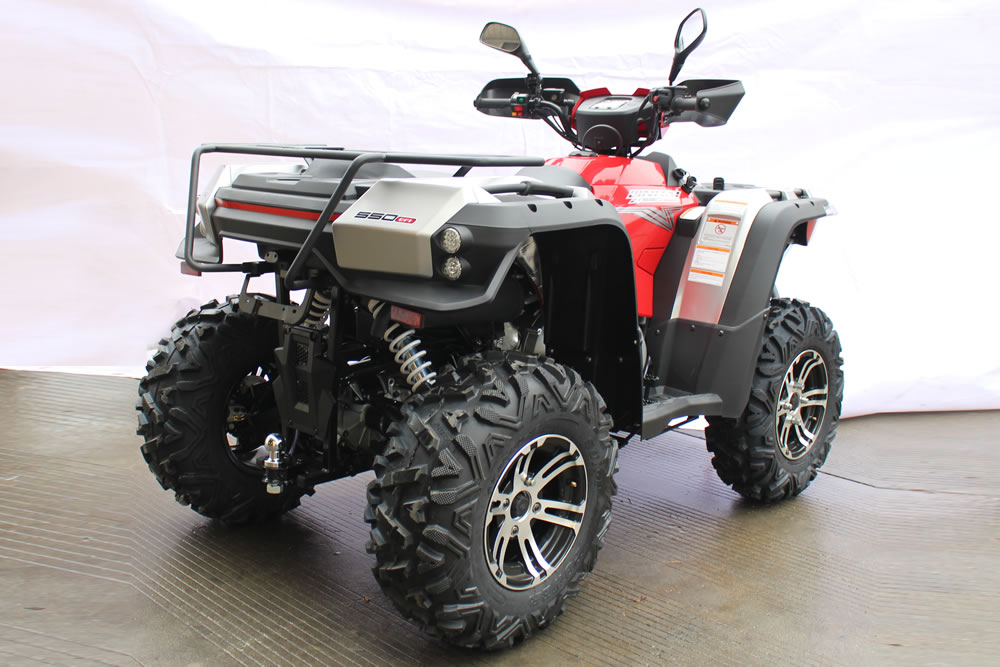

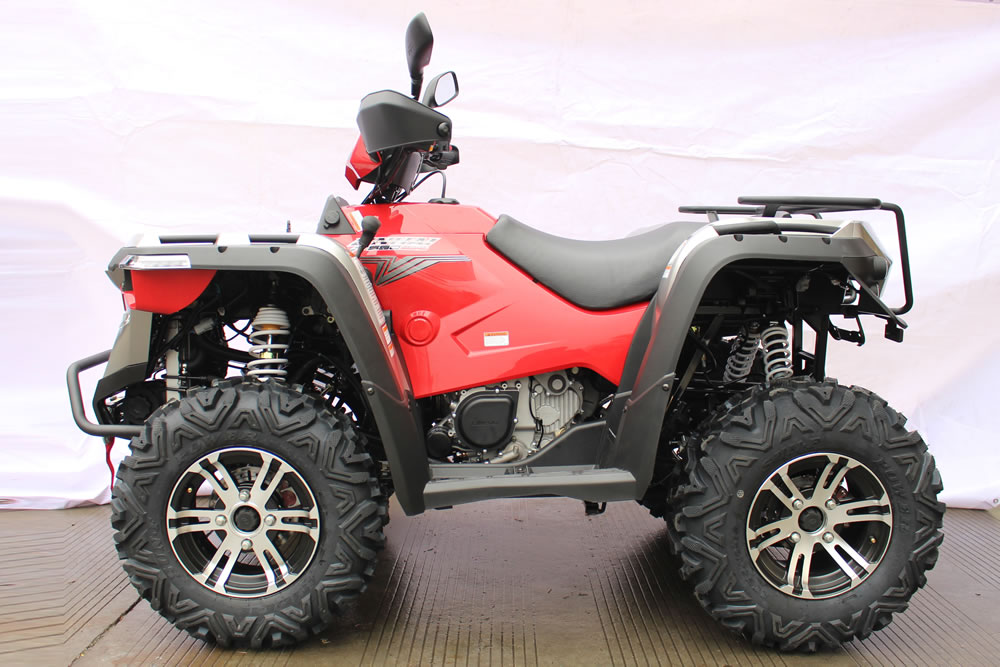

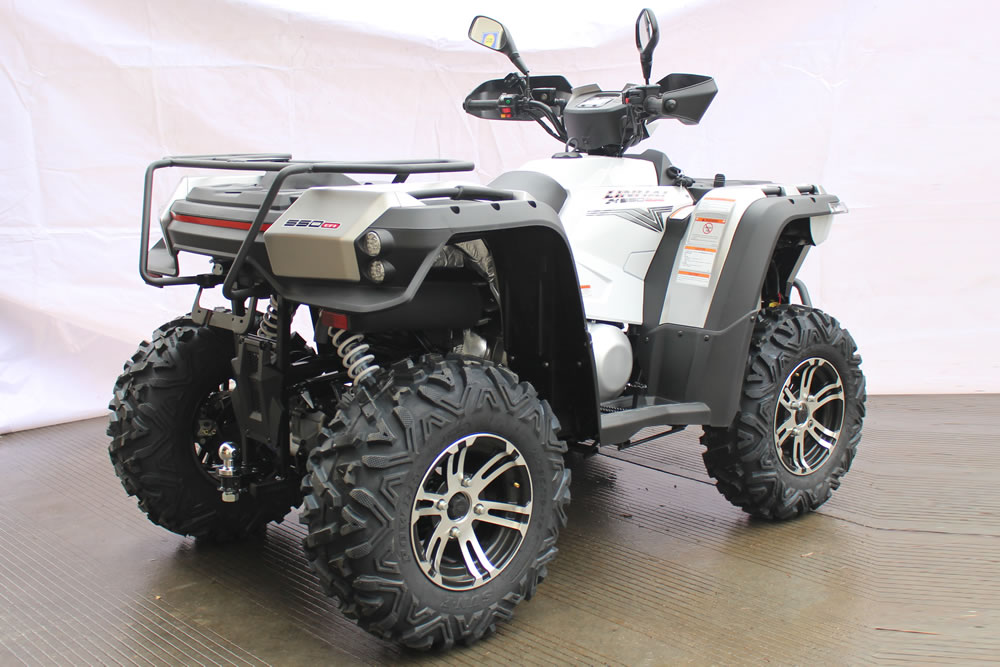

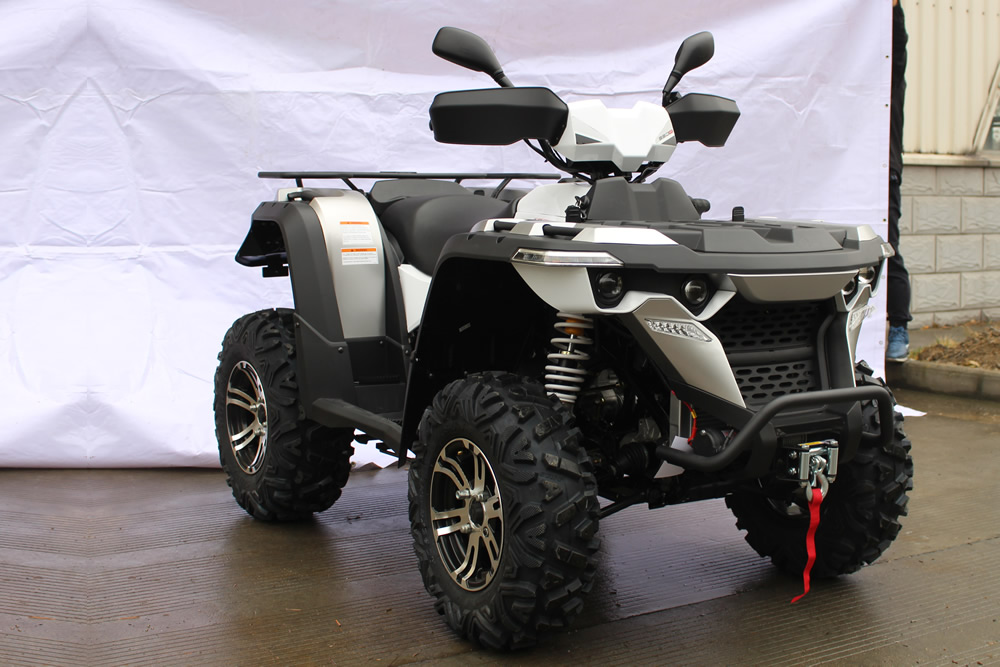

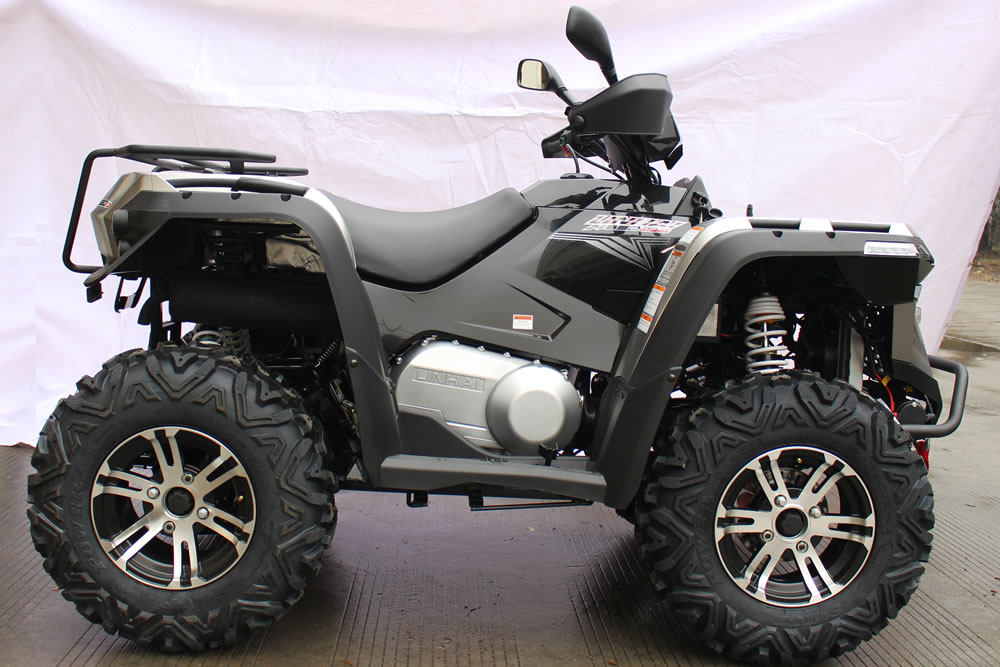

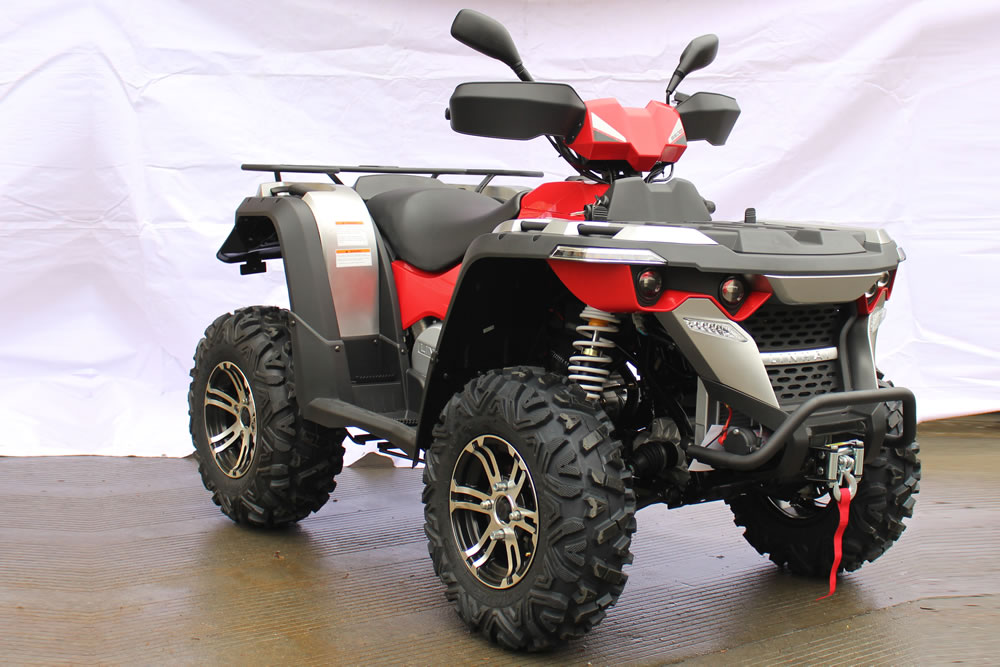

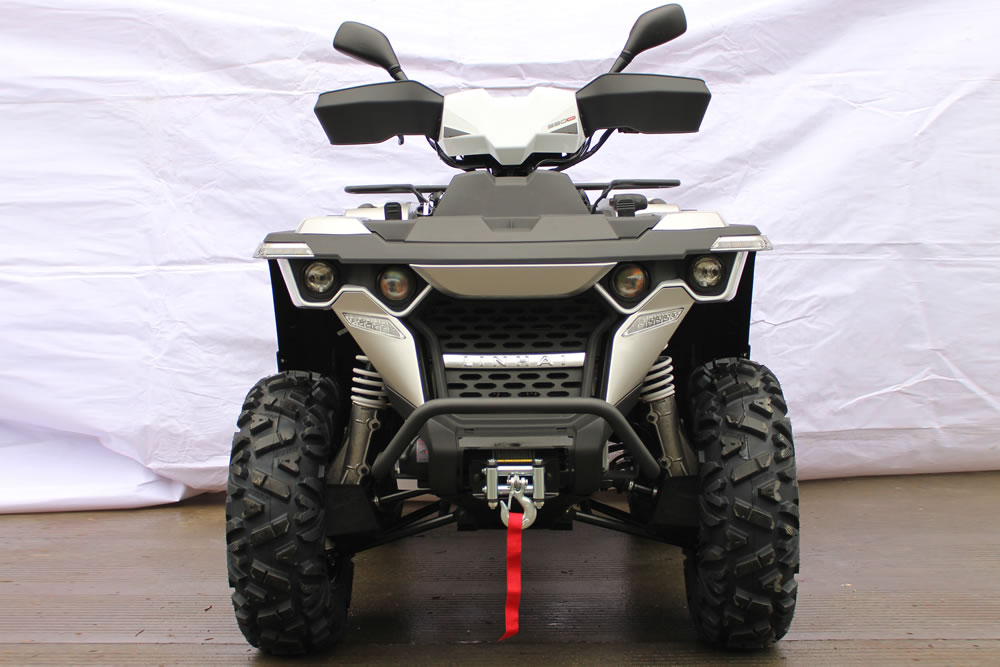

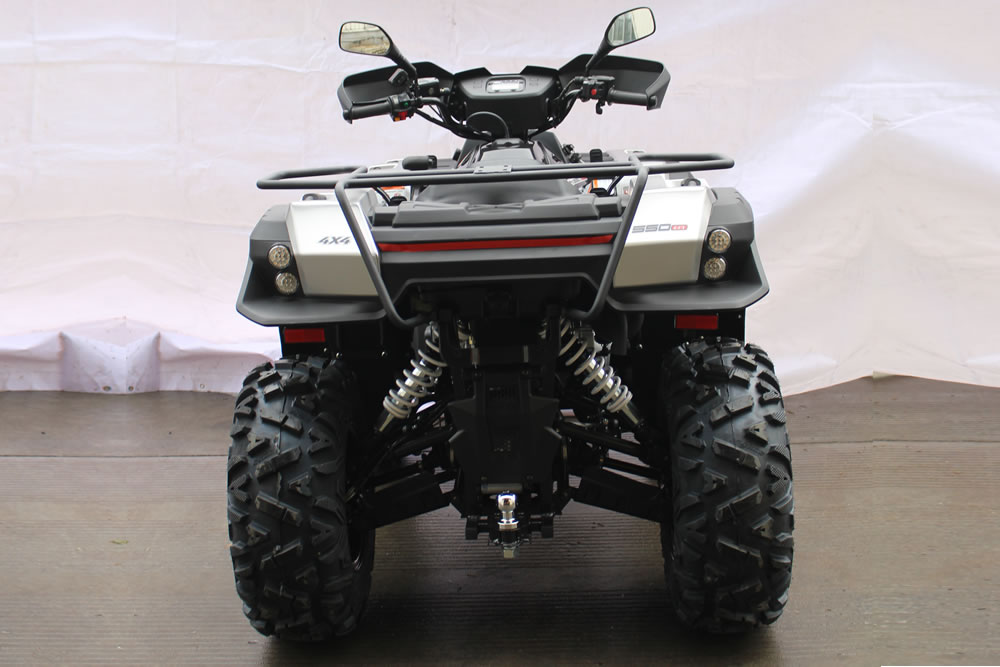

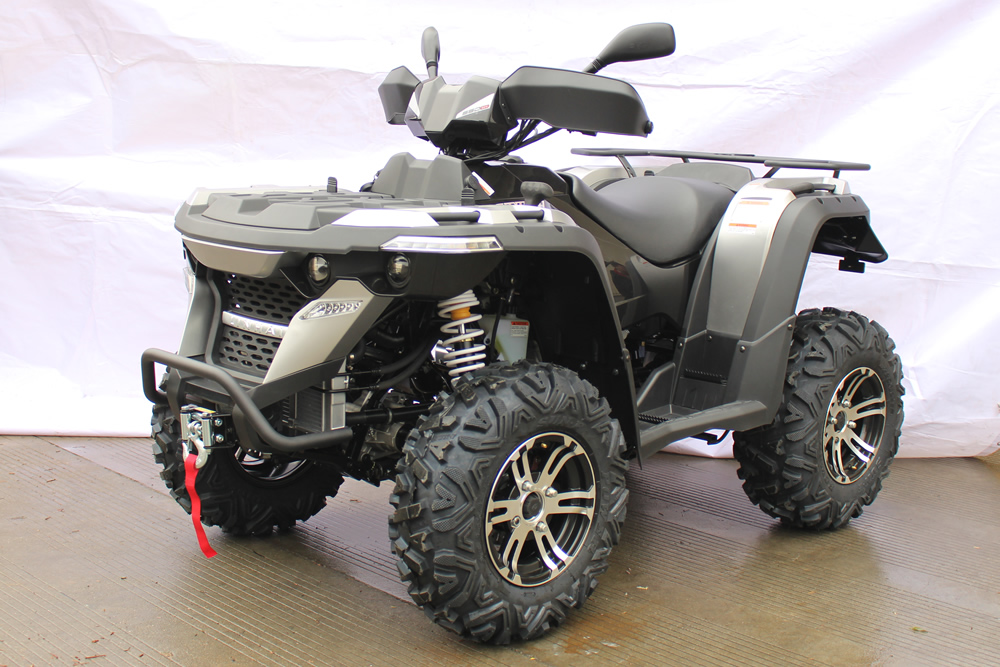

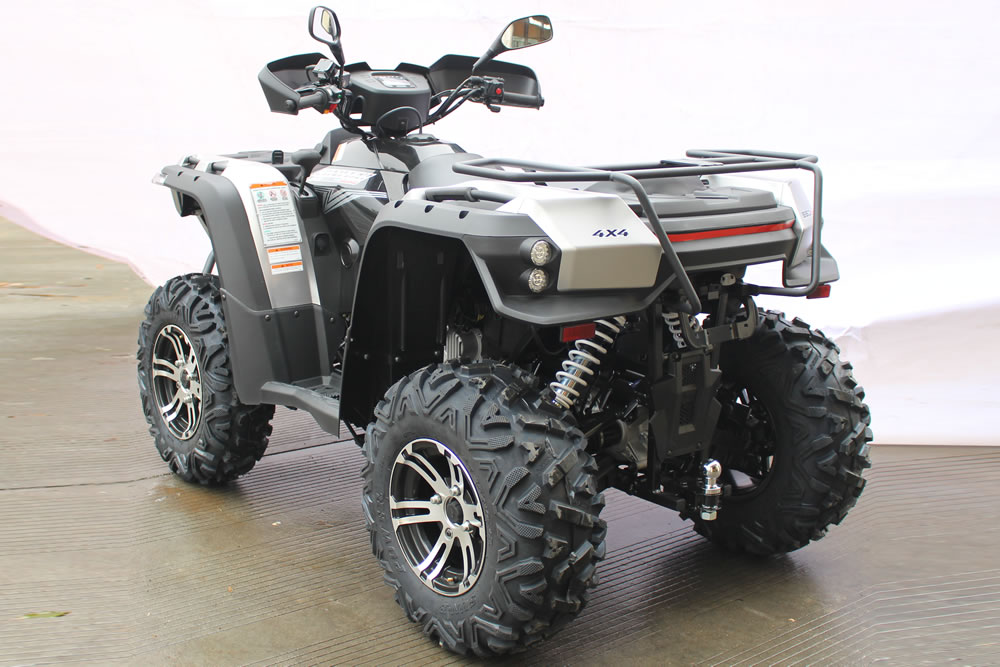

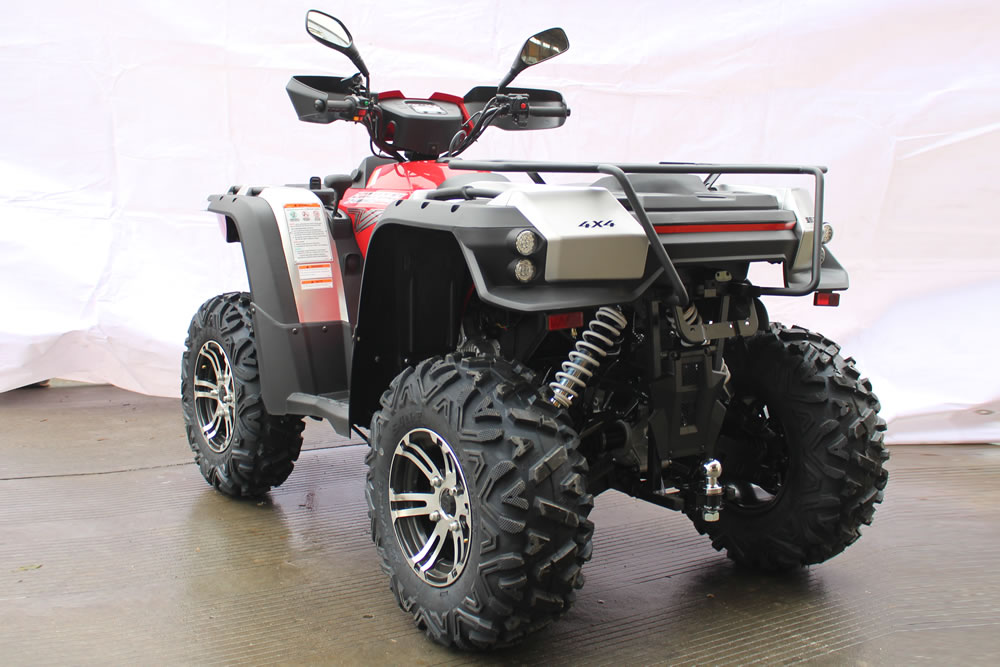

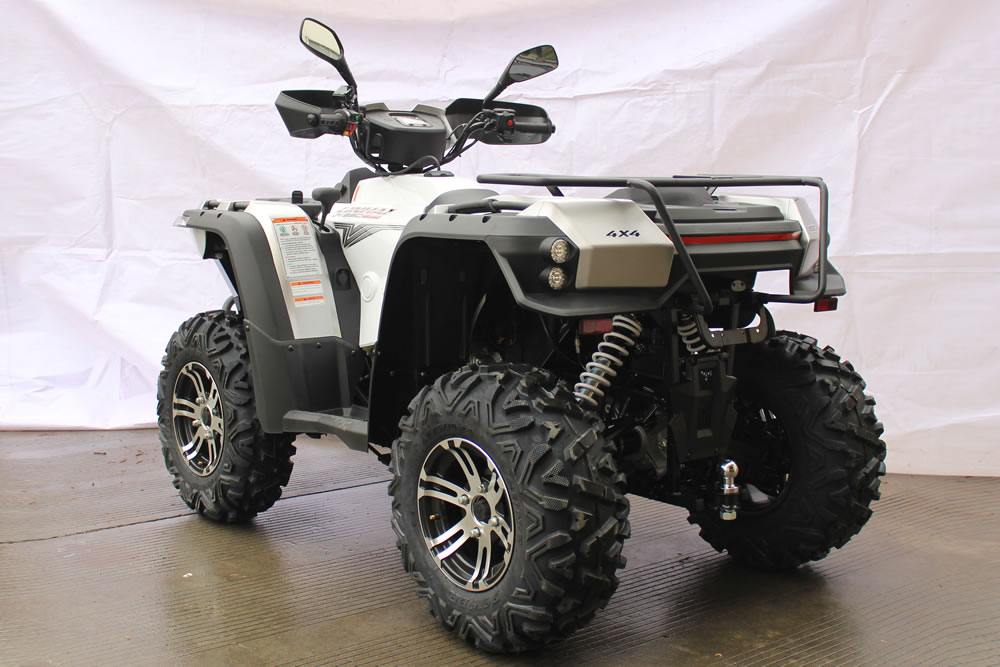

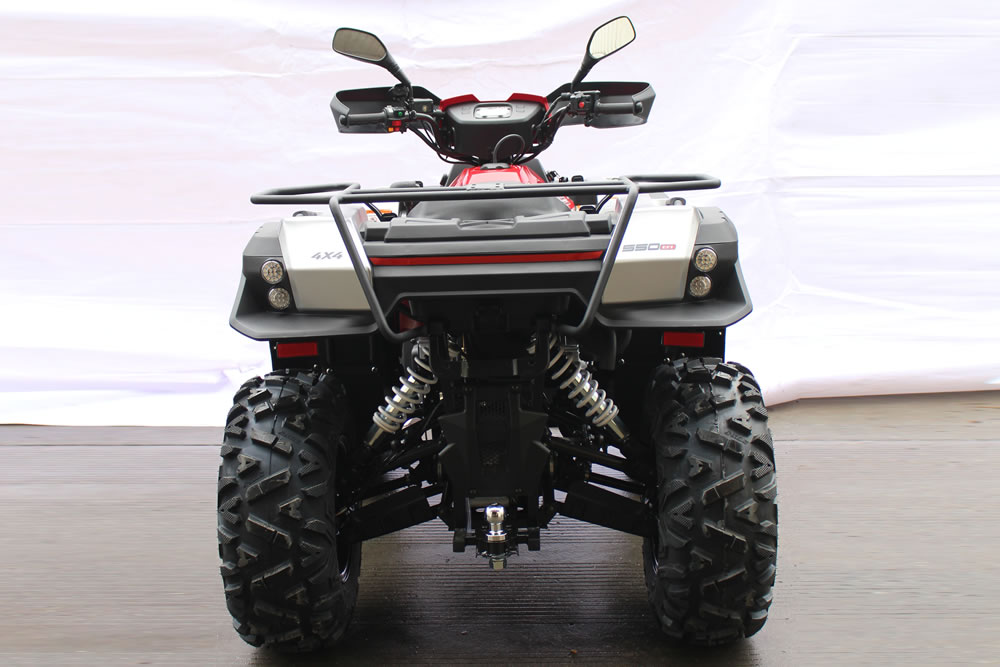

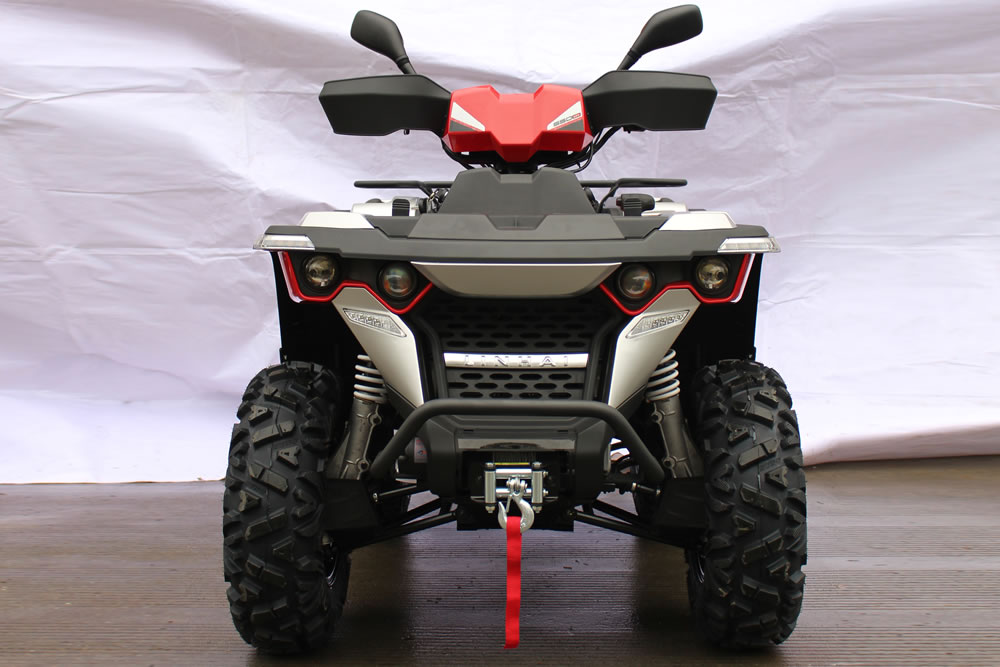

M550 EFI
Overview
Specifications
Colors
In action...
Overview
LINHAI ATV M550 EFI DISPLACEMENT:
493 ML
MAX POWER:
24kw/6500r/min
CLEARANCE:
253 MM
FUEL TANK CAPACITY:
14.5L
Specifications
Model
M550 EFI
Length×Width×Height mm
2070×1150×1240
WHEELBASE mm
1285
WHEELBASE (FRONT TO REAR) mm
950/930
Ground Clearance
253
WEIGHT kg
364
WEIGHT WITH MAX. LOAD kg
568
TOP SPEED km/h
89
BRAKE TYPE(F/R)
DISC/DISC
BRAKE HANDLE TYPE(F/R)
Hand brake,foot brake/ Hand brake,foot brake
WHEEL TYPE
Aluminium alloy
TIRE TYPE(F/R)
AT25×8-12/AT25×10-12
TIRE PRESSURE(F/R) kPa
98/98
TURNING DIAMETER mm
6500
SEAT HEIGHT mm
900
FUEL TANK CAPACITY L
14.5
TYPE
LH188MR
BRAND
LINHAI
MODEL
SOHC,4 STROKE,LIQUID-COOLING
BORE×ROUTE mm
87.5×82
DISPLACEMENT ml
493
COMPRESSION RATIO
10.2:1
MAX. POWER kW/（r/min）
24kw/6500r/min
MAX.TORQUE N•m（r/min）
38.8N.m/5500 r/min
IDLE RPM r/min
1400 r/min±100 r/min
MIN.FUEL CONSUMPTION g/（Kw•.h）
340
FUEL LEVEL
92 UNLEAD
LUBRICATING SYSTEM
PRESSURE AND SPLASH
OIL NUMBER
SAE15W/40
CLUTCH TYPE
AUTOMMATIC CENTRIFUGAL
START-UP TYPE
ELECTRIC START
IGNITION SYSTEM
ECU

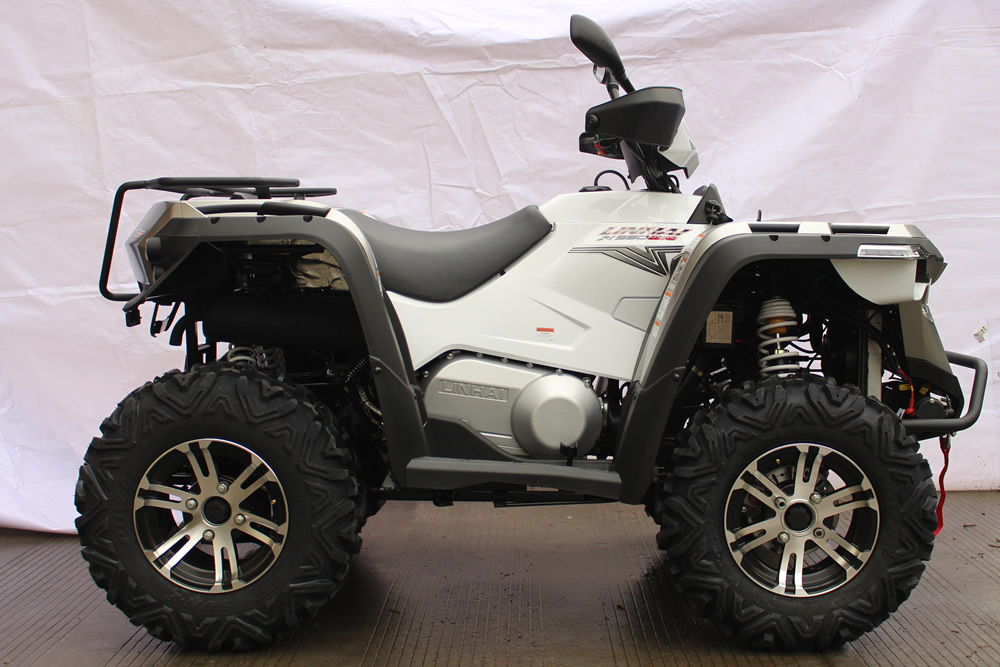

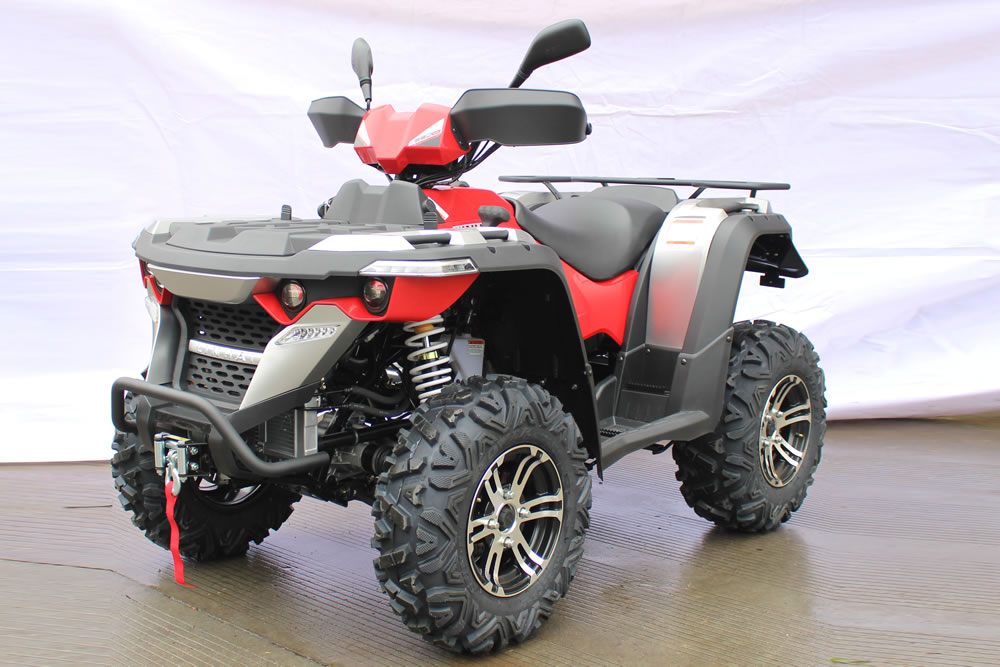

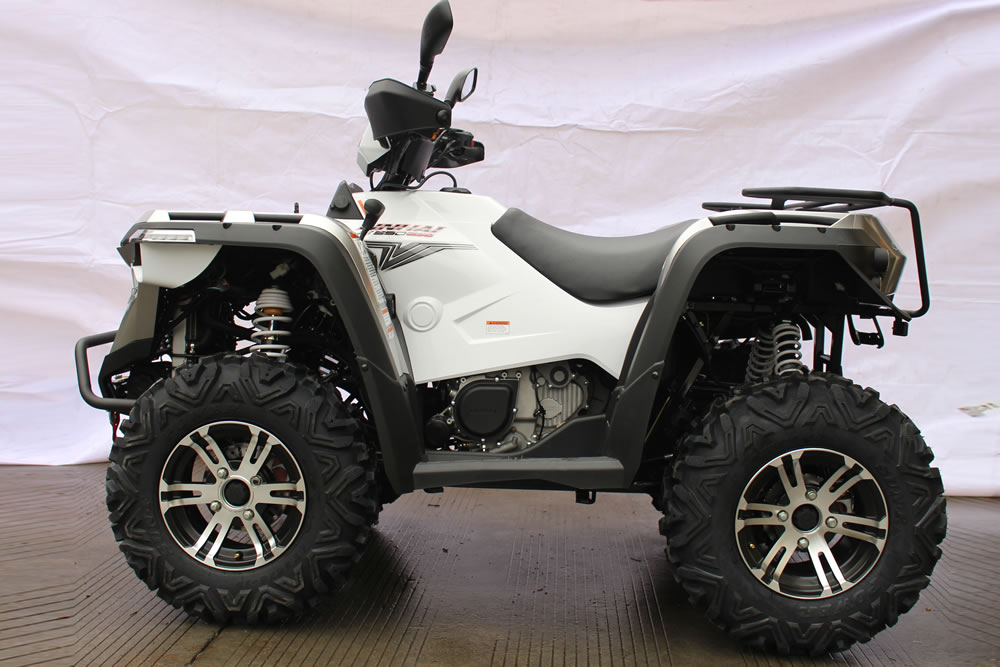

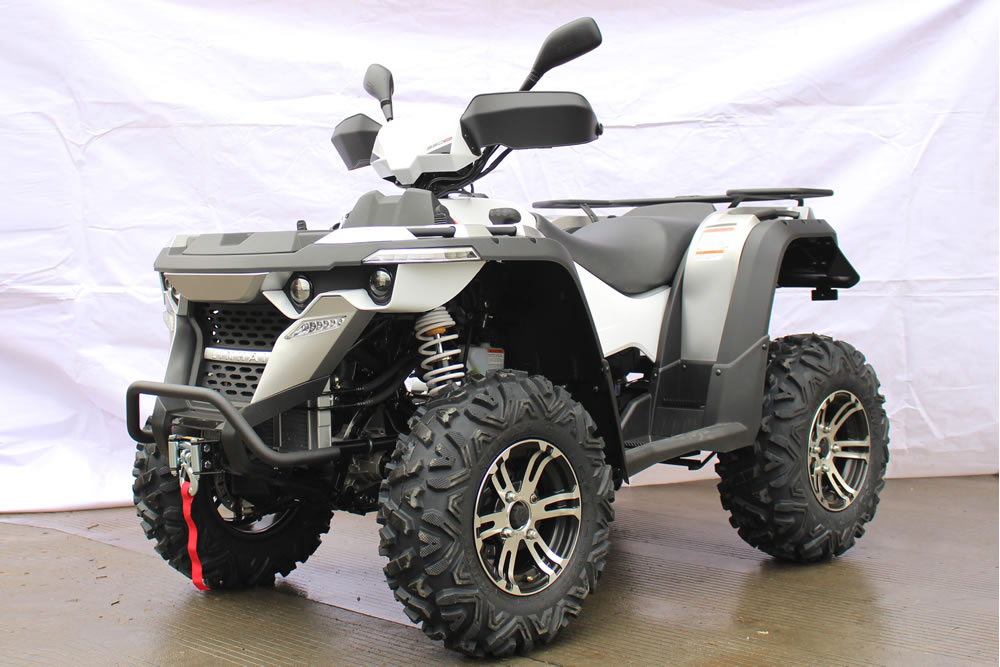

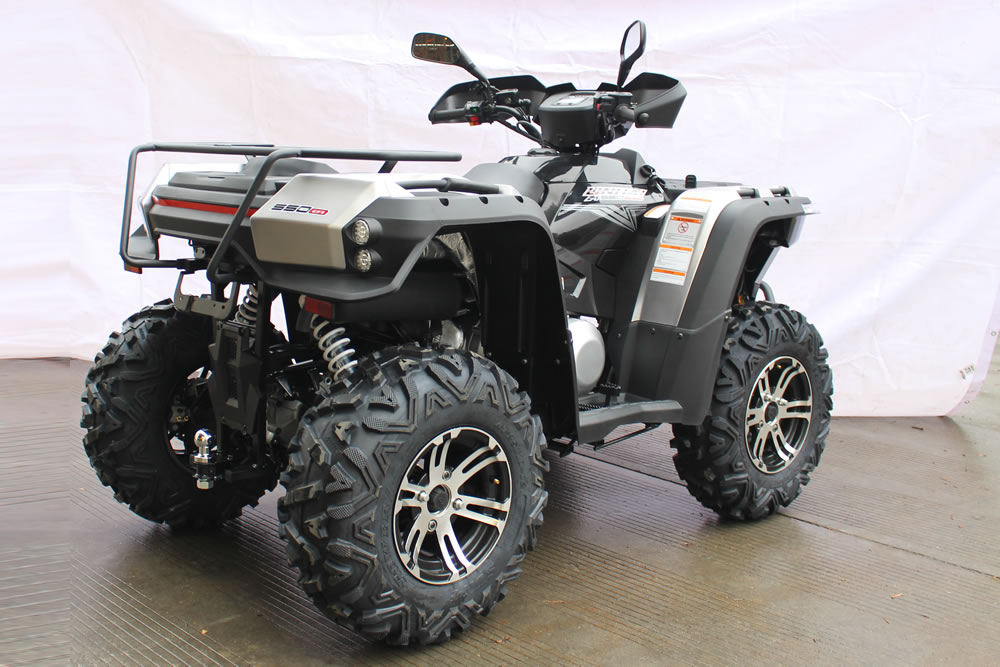

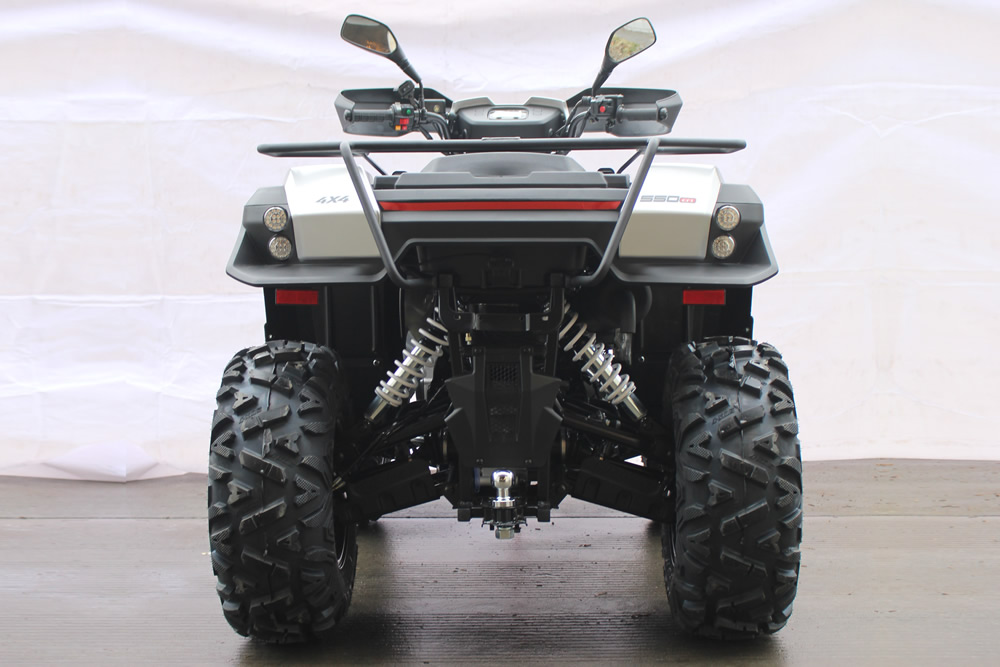

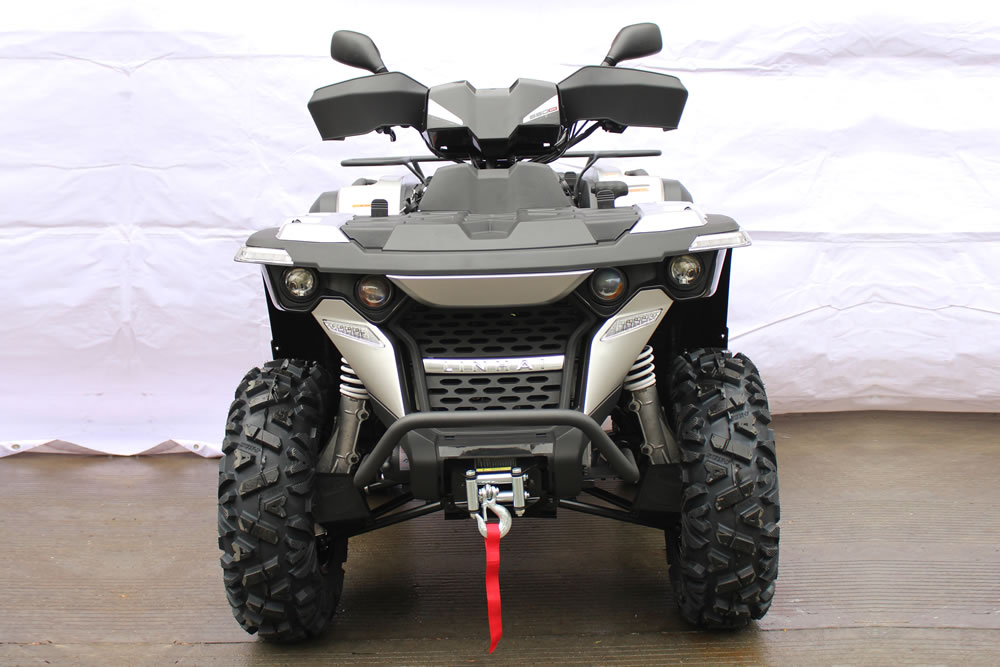

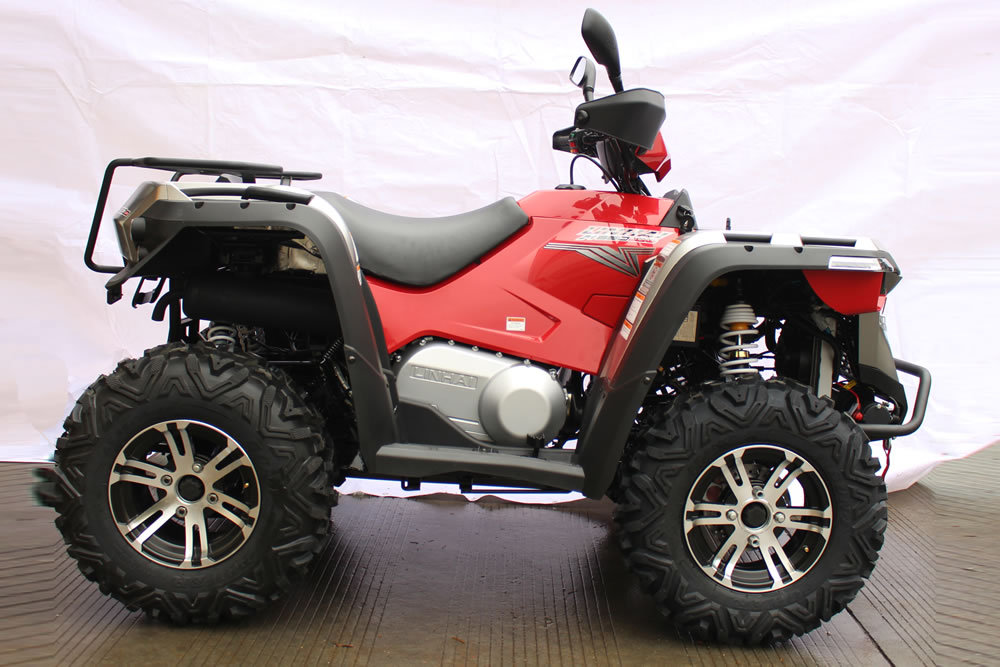

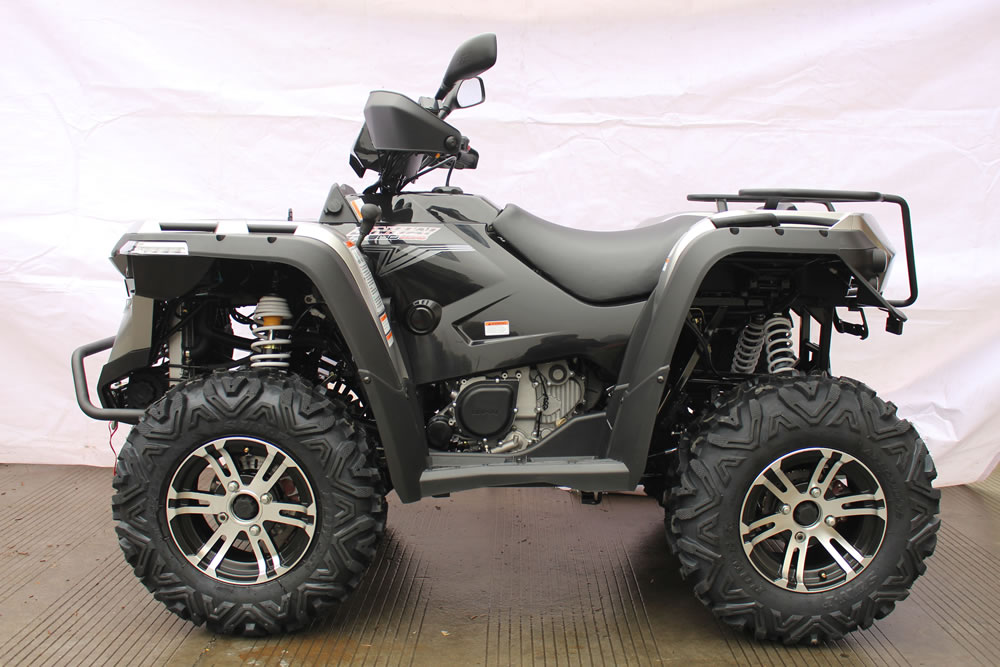

Colors
Black
Red
White

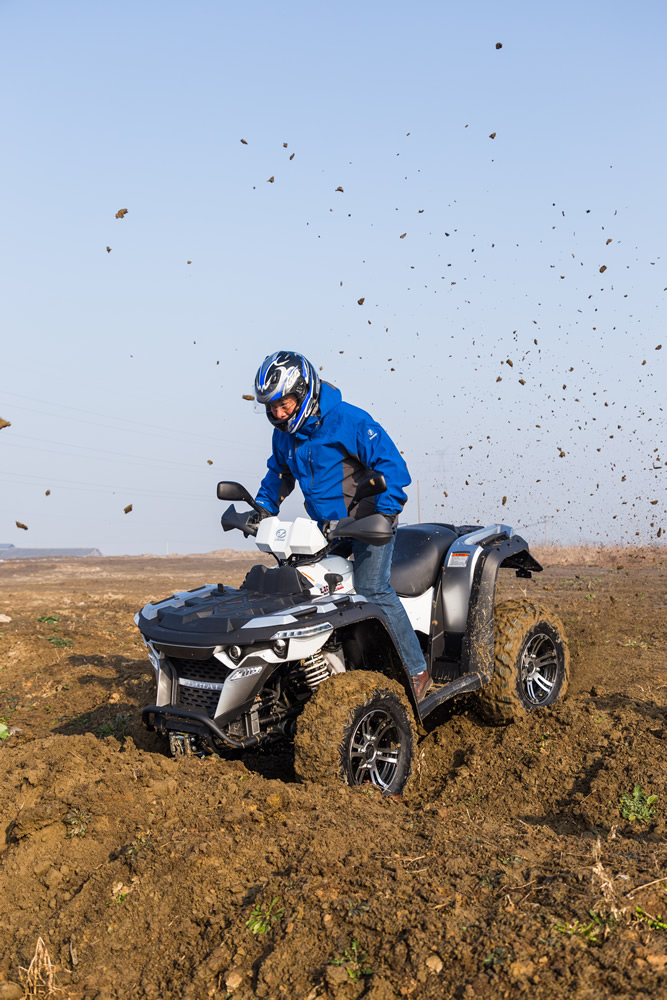

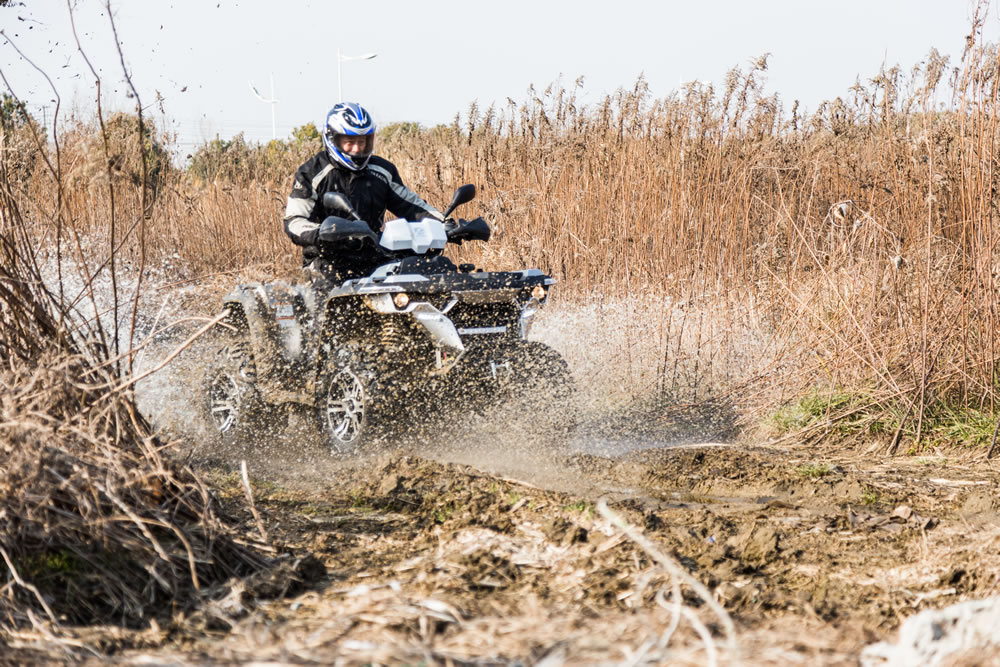

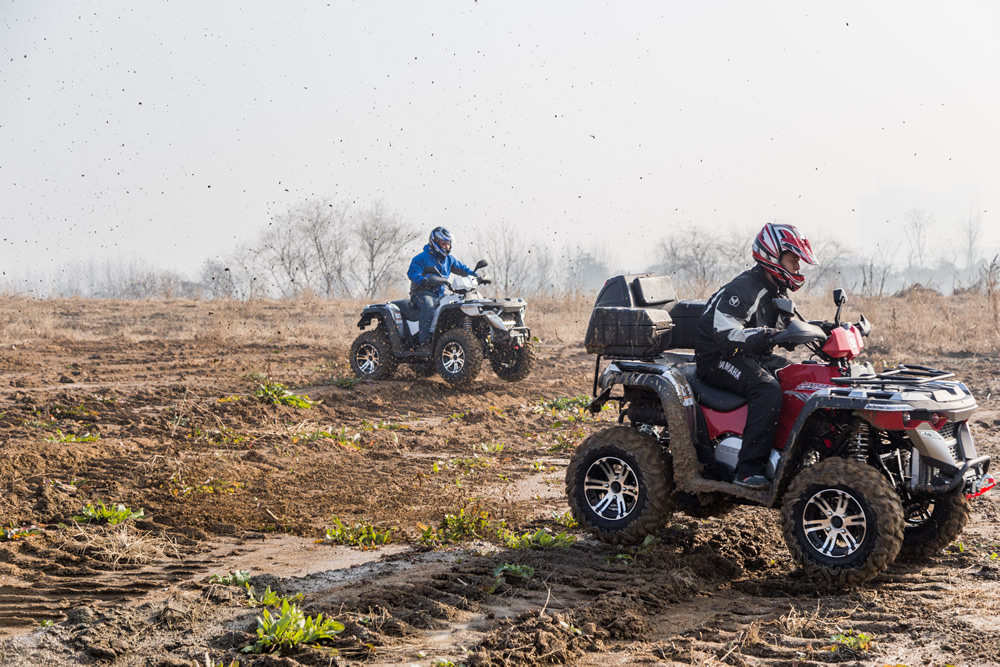

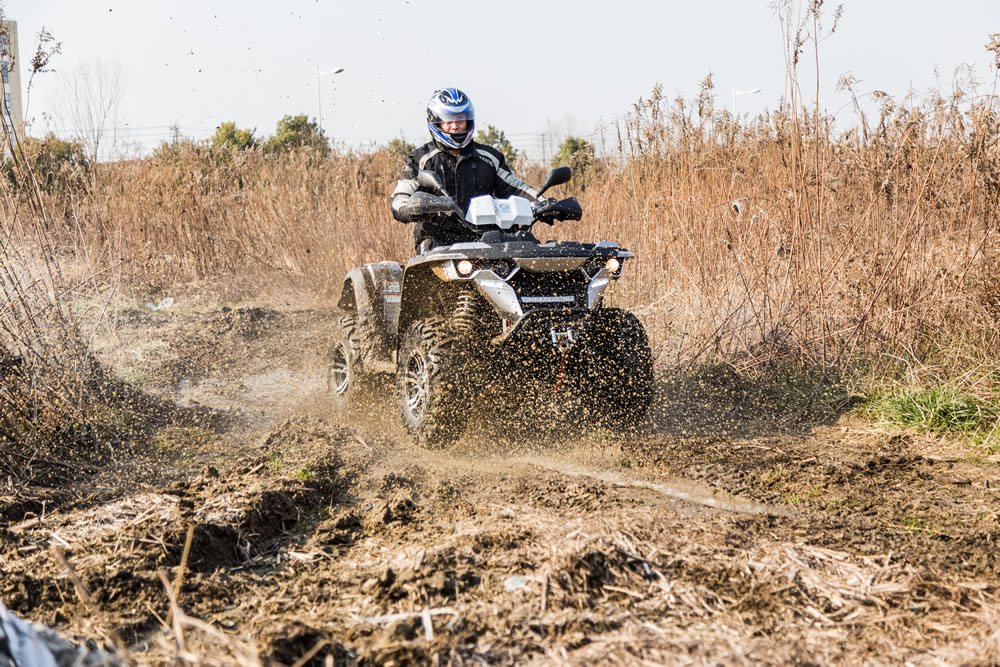

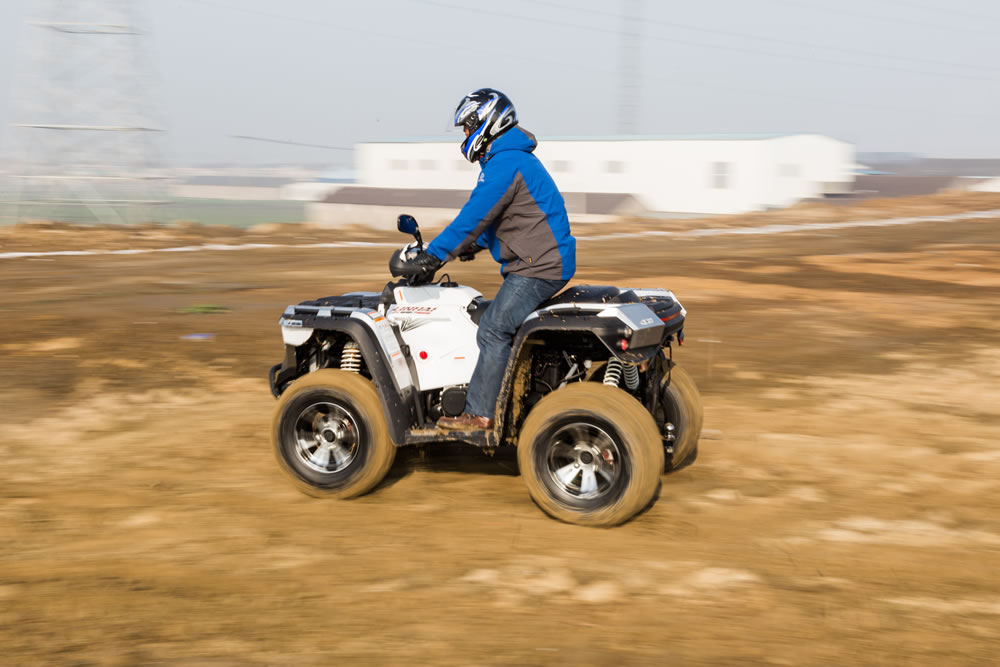

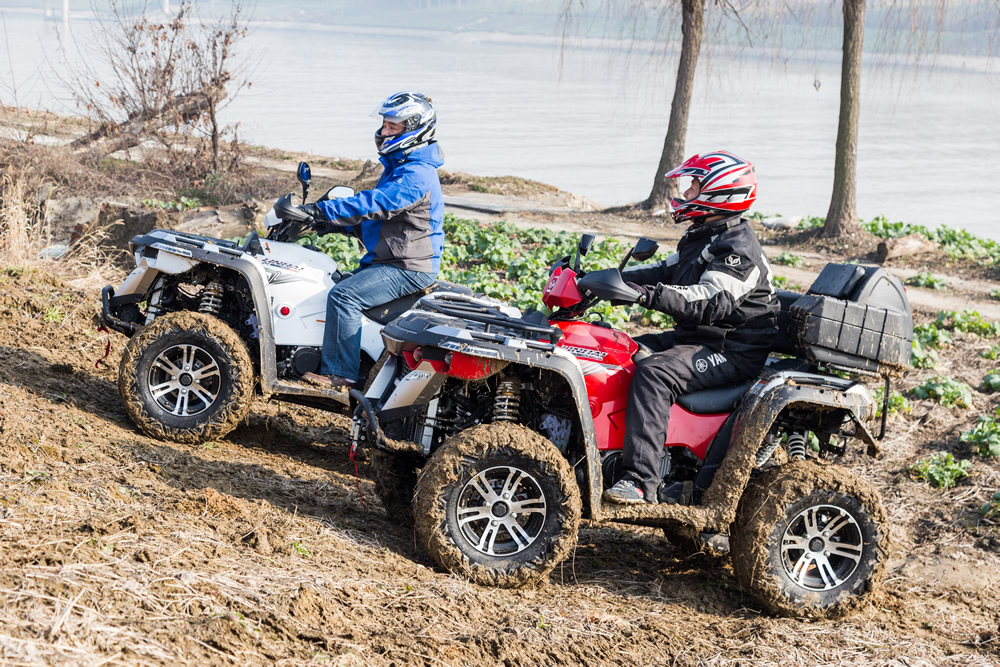

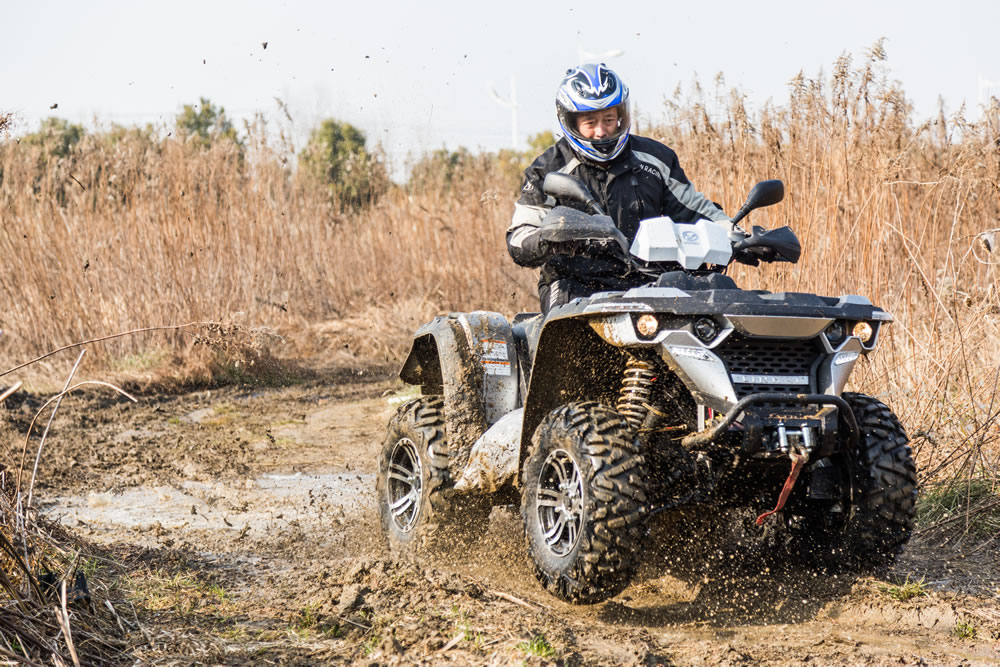

In action...
